The TPS40210 is a wide input voltage (5.5 V to 52 V) non-synchronous boost controller. It is suitable for topologies that require a grounded source N-channel FET, including boost, flyback, SEPIC, and various LED driver applications. Device features include programmable soft start, overcurrent protection with automatic retry, and programmable oscillator frequency. Current-mode control provides improved transient response and simplified loop compensation.
(1) Custom temperature ranges available
| Topology | Boost |
| Vin (min) (V) | 5.5 |
| Vin (max) (V) | 52 |
| Vout (min) (V) | 5.5 |
| Vout (max) (V) | 300 |
| Regulated outputs (#) | 1 |
| Switching frequency (min) (kHz) | 35 |
| Switching frequency (max) (kHz) | 1000 |
| Iq (typ) (mA) | 0.53 |
| Features | Enable, Frequency synchronization, Nonsynchronous rectification |
| Duty cycle (max) (%) | 95 |
| Rating | High Temp |
| Operating temperature range (°C) | -55 to 210 |
| Type | Controller |

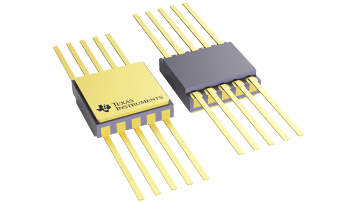

| CFP (HKK) | 10 | 40.3225 mm² 6.35 x 6.35 |
| DIESALE (KGD) | — | See data sheet |
