TPS22904

正在供货

具有输出放电功能的 3.6V、0.5A、66mΩ 负载开关

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

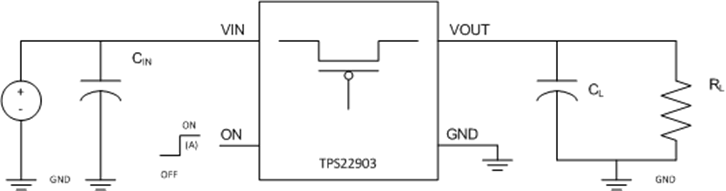

The TPS22903 and TPS22904 are ultra-small, low r_ON single channel load switches with controlled turnon. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.1 V to 3.6 V. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In TPS22904, a 85-Ω on-chip load resistor is added for output quick discharge when switch is turned off.

TPS22903 and TPS22904 are available in a space-saving 4-terminal WCSP 0.4-mm pitch (YFP). The devices are characterized for operation over the free-air temperature range of –40°C to 85°C.

Input Voltage: 1.1 V to 3.6 V
Ultralow ON-State Resistance
- r_ON = 66 mΩ at V_IN = 3.6 V
- r_ON = 75 mΩ at V_IN = 2.5 V
- r_ON = 90 mΩ at V_IN = 1.8 V
- r_ON = 135 mΩ at V_IN = 1.2 V
500-mA Maximum Continuous Switch Current
Quiescent Current < 1 µA
Shutdown Current < 1 µA
Low Control Input Threshold Enables Use of 1.2-
V, 1.8-V, 2.5-V, and 3.3-V Logic
Controlled Slew Rate (5 µs Maximum at 3.6 V)
Quick Output Discharge (TPS22904 Only)
ESD Performance Tested Per JESD 22
- 2000-V Human Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

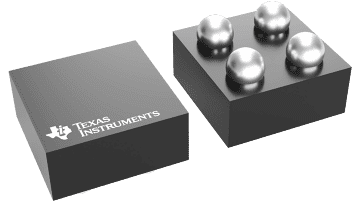

4-Terminal Wafer Chip-Scale Package (WCSP)
- 0.8 mm × 0.8 mm,
  0.4-mm Pitch, 0.5-mm Height

Number of channels	1
Vin (min) (V)	1.1
Vin (max) (V)	3.6
Imax (A)	0.5
Ron (typ) (mΩ)	68
Shutdown current (ISD) (typ) (µA)	1
Quiescent current (Iq) (typ) (µA)	0.18
Soft start	Fixed Rise Time
Current limit type	None
Features	Quick output discharge
Rating	Catalog
Operating temperature range (°C)	-40 to 85
FET	Internal
Device type	Load switches
Function	Inrush current control

DSBGA (YFP)

1 mm² 1 x 1
