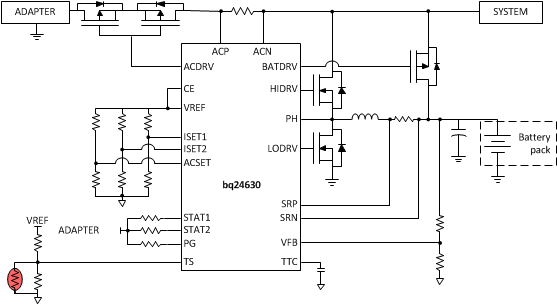

The bq24630 is a highly integrated lithium phosphate switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring.
The bq24630 charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The bq24630 automatically restarts the charge cycle if the battery voltage falls below an internal threshold and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
All other trademarks are the property of their respective owners
| Number of series cells | 1, 2, 3, 4, 5, 6, 7 |
| Charge current (max) (A) | 10 |
| Vin (max) (V) | 28 |
| Cell chemistry | Lithium Phosphate/LiFePO4 |
| Battery charge voltage (min) (V) | 1.8 |
| Battery charge voltage (max) (V) | 26 |
| Absolute max Vin (max) (V) | 33 |
| Control topology | Switch-Mode Buck |
| Control interface | Standalone (RC-Settable) |
| Features | BAT temp thermistor monitoring (hot/cold profile), IINDPM (Input current limit) |
| Vin (min) (V) | 5 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| VQFN (RGE) | 24 | 16 mm² 4 x 4 |
