The THS412x is one in a family of fully differential-input, differential-output devices fabricated using Texas Instruments’ state-of-the-art submicron CMOS process.
The THS412x consists of a true fully-differential signal path from input to output. This results in excellent common-mode noise rejection and improved total harmonic distortion.
PowerPAD is a trademark of Texas Instruments.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 3 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 3.5 |
| BW at Acl (MHz) | 100 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 55 |
| Architecture | Fully Differential ADC Driver, High Input Impedance |
| Vn at flatband (typ) (nV√Hz) | 5.4 |
| Iq per channel (typ) (mA) | 11 |
| Rail-to-rail | In to V+, Out |
| Vos (offset voltage at 25°C) (max) (mV) | 8 |
| Operating temperature range (°C) | -40 to 85 |
| Iout (typ) (mA) | 25 |
| 2nd harmonic (dBc) | 79 |
| 3rd harmonic (dBc) | 93 |
| Frequency of harmonic distortion measurement (MHz) | 1 |
| GBW (typ) (MHz) | 100 |
| Input bias current (max) (pA) | 1.2 |
| Features | Shutdown |
| CMRR (typ) (dB) | 96 |
| Rating | Catalog |

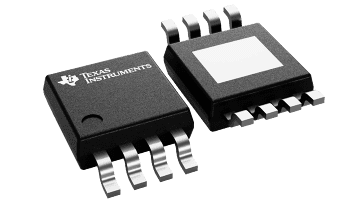

| HVSSOP (DGN) | 8 | 14.7 mm² 3 x 4.9 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
