The TPS22932B device is a low rON load switch with controlled turnon. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.1 V to 3.6 V.
The switch is controlled by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VIN or GND. The control pins can be connected to low-voltage GPIOs allowing the switch to be controlled by either 1.2-V, 1.8-V, 2.5-V, or 3.3-V logic signals while keeping extremely low quiescent current.
A 120-Ω on-chip load resistor is available for output quick discharge when the switch is turned off. The rise time (slew rate) of the device is internally controlled to avoid inrush current: the rise time of TPS22932B is 165 µs.

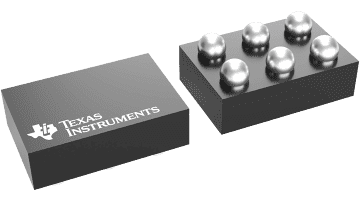

TPS22932B is available in a space-saving 6-pin DSBGA (YFP with 0.4-mm pitch). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
All other trademarks are the property of their respective owners
| Number of channels | 1 |
| Vin (min) (V) | 1.1 |
| Vin (max) (V) | 3.6 |
| Imax (A) | 0.5 |
| Ron (typ) (mΩ) | 58 |
| Shutdown current (ISD) (typ) (µA) | 0.34 |
| Quiescent current (Iq) (typ) (µA) | 0.86 |
| Soft start | Fixed Rise Time |
| Current limit type | None |
| Features | Quick output discharge |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| FET | Internal |
| Device type | Load switches |
| Function | Inrush current control |
| DSBGA (YFP) | 6 | 1.4000000000000001 mm² 1 x 1.4000000000000001 |
