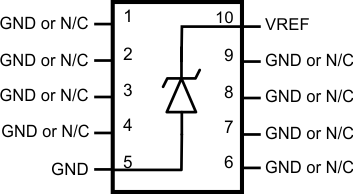

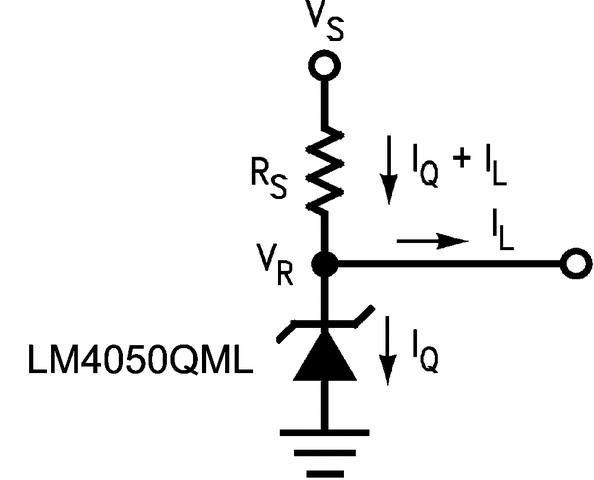

The LM4050QML precision voltage reference is available in a 10-Lead Ceramic CLGA package. The LM4050QML’s design eliminates the need for an external stabilizing capacitor while ensuring stability with a capacitive load, thus making the LM4050QML easy to use. The LM4050-2.5QML has a 60 µA minimum and 15 mA maximum operating current. The LM4050-5.0QML has a 74 µA minimum and 15 mA maximum operating current.
The LM4050QML utilizes fuse and zener-zap reverse breakdown voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% at 25°C. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
The LM4050QML operates over the temperature range of –55°C to +125°C.
All trademarks are the property of their respective owners.
| VO (V) | 2.5, 5 |
| Initial accuracy (max) (%) | 0.1 |
| VO adj (min) (V) | 2.5 |
| VO adj (max) (V) | 5 |
| Iz for regulation (min) (µA) | 65, 74 |
| Reference voltage (V) | Fixed |
| Rating | Space |
| Temp coeff (max) (ppm/°C) | 144, 166 |
| Operating temperature range (°C) | -55 to 125 |
| Iout/Iz (max) (mA) | 15 |
| CFP (NAC) | 10 | 62.9285 mm² 9.91 x 6.35 |
