As a member of the SWIFT™ family of DC/DC regulators, the TPS5450 is a high-output-current PWM converter that integrates a low-resistance high-side N-channel MOSFET. Included on the substrate with the listed features are a high-performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions, an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 5.5 V, an internally set slow-start circuit to limit inrush currents, and a voltage feed-forward circuit to improve the transient response. Using the ENA pin, shutdown supply current is reduced to 18 µA typically. Other features include an active-high enable, overcurrent limiting, overvoltage protection, and thermal shutdown. To reduce design complexity and external component count, the TPS5450 feedback loop is internally compensated.

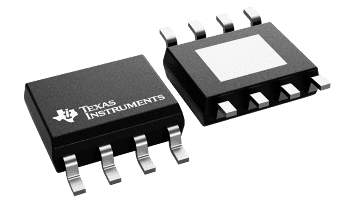

The TPS5450 device is available in a thermally enhanced, 8-pin SOIC PowerPAD™ package. TI provides evaluation modules and software tools to aid in achieving high-performance power supply designs to meet aggressive equipment development cycles.
(1) Additional temperature ranges are available - contact factory
| Vin (min) (V) | 5.5 |
| Vin (max) (V) | 36 |
| Vout (min) (V) | 1.22 |
| Vout (max) (V) | 31 |
| Iout (max) (A) | 5 |
| Iq (typ) (mA) | 3 |
| Switching frequency (min) (kHz) | 500 |
| Switching frequency (max) (kHz) | 500 |
| Features | Enable, Over Current Protection |
| Operating temperature range (°C) | -55 to 125 |
| Rating | HiRel Enhanced Product |
| Regulated outputs (#) | 1 |
| Control mode | Voltage mode |
| Duty cycle (max) (%) | 89 |
| Type | Converter |
| HSOIC (DDA) | 8 | 29.4 mm² 4.9 x 6 |
