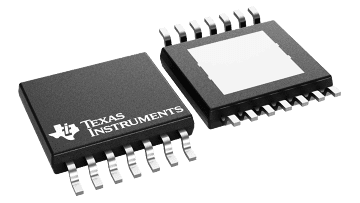

THS6093

正在供货

具有关断模式的 275mA、+12V ADSL CPE 和 PLC 线路驱动器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The THS6092/3 is a high-speed line driver ideal for driving signals from the remote terminal to the central office in asymmetrical digital subscriber line (ADSL) applications. It can operate from a single +12-V supply voltage while drawing only 7.3 mA of supply current per channel. It offers low -72 dBc total harmonic distortion driving a 25- load (2 Vpp). The THS6092/3 offers a high 18.4-Vpp differential output swing across a 50- load from a single +12-V supply. The THS6093 features a low-power shutdown mode, consuming only 300 uA quiescent current per channel. The THS6092/3 is packaged in a standard SOIC, SOIC PowerPAD™, and TSSOP PowerPAD™ package.

Remote Terminal ADSL Line Driver
- Ideal for Both Full Rate ADSL and G.Lite
- Compatible With 1:2 Transformer Ratio
Wide Supply Voltage Range +5 V to +14 V
- Ideal for Single Supply +12-V Operation
Low 2.1 pA/Hz Noninverting Current Noise
- Reduces Noise Feedback Through Hybrid Into Downstream Channel
Wide Output Swing
- 18.4 Vpp Differential Output Voltage, R_L = 50 , 12-V Single Supply
High Output Current
- 275 mA (typ)
High Speed
- 100 MHz (-3 dB, G=1, 12-V Single Supply)
- 600 V/us Slew Rate (G = 4, 12-V Single Supply)
Low Distortion, Single-Ended, G = 4
- -72 dBc (250 kHz, 2 Vpp, 25 load)
- -78 dBc (250 kHz, 2 Vpp, 100 load)
Low Power Shutdown (THS6093)
- 300 uA Total Standby Current
Thermal Shutdown and Short Circuit Protection
Standard SOIC, SOIC PowerPAD™, and TSSOP PowerPAD™ Package
Evaluation Module Available

PowerPAD is a trademark of Texas Instruments.

Number of channels	2
Architecture	DSL Line Driver, PLC Line Driver
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	5
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	14
BW at Acl (MHz)	100
Acl, min spec gain (V/V)	1
Vn at flatband (typ) (nV√Hz)	2.1
Vn at 1 kHz (typ) (nV√Hz)	2.1
Iq per channel (typ) (mA)	7.3
Vos (offset voltage at 25°C) (max) (mV)	16
Rail-to-rail	No
Rating	Catalog
Operating temperature range (°C)	-40 to 85
CMRR (typ) (dB)	63
Input bias current (max) (pA)	10000000
Offset drift (typ) (µV/°C)	20
GBW (typ) (MHz)	100
Iout (typ) (mA)	275

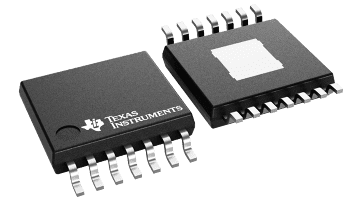

HTSSOP (PWP)

32 mm² 5 x 6.4
