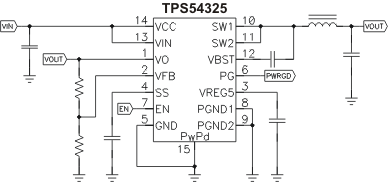

The TPS54325 device is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54325 device enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution.

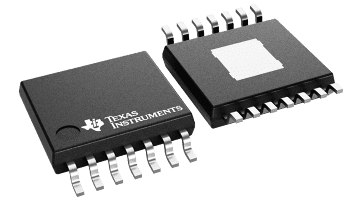

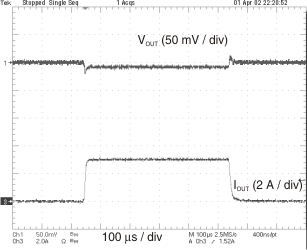

The main control loop for the TPS54325 uses the D-CAP2™ mode control which provides a very fast transient response with no external components. The TPS54325 also has a proprietary circuit that enables the device to adapt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VCC input , and from 2.0-V to 18-V VIN input power supply voltage. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable slow start time and a power good function. The TPS54325 is available in the 14 pin HTSSOP package, and designed to operate from –40°C to 85°C.
| Vin (min) (V) | 4.5 |
| Vin (max) (V) | 18 |
| Vout (min) (V) | 0.76 |
| Vout (max) (V) | 5.5 |
| Iout (max) (A) | 3 |
| Iq (typ) (mA) | 0.85 |
| Switching frequency (min) (kHz) | 700 |
| Switching frequency (max) (kHz) | 700 |
| Features | Enable, Power good, Soft Start Adjustable, Synchronous Rectification |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| Regulated outputs (#) | 1 |
| Control mode | D-CAP2 |
| Duty cycle (max) (%) | 90 |
| Type | Converter |
| HTSSOP (PWP) | 14 | 32 mm² 5 x 6.4 |
