CSD16412Q5A

正在供货

产品详情

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.

Ultra Low Qg and Qgd
Low Thermal Resistance
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free

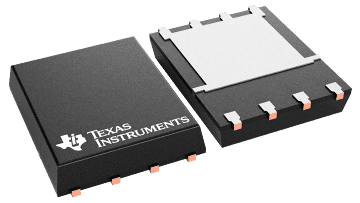

SON 5mm × 6mm Plastic Package
APPLICATIONS
- Point-of-Load Synchronous Buck Converter for Applications in
  Networking, Telecom and Computing Systems
- Optimized for Control FET Applications

NexFET is a trademark of Texas Instruments.

VDS (V)	25
Configuration	Single
Rds(on) at VGS=4.5 V (max) (mΩ)	16
Rds(on) at VGS=10 V (max) (mΩ)	11
IDM - pulsed drain current (max) (A)	91
QG (typ) (nC)	2.9
QGD (typ) (nC)	0.7
QGS (typ) (nC)	1.4
VGS (V)	16
VGSTH typ (typ) (V)	2
ID - silicon limited at TC=25°C (A)	52
ID - package limited (A)	52
Logic level	Yes
Operating temperature range (°C)	-55 to 150
Rating	Catalog

VSONP (DQJ)

29.4 mm² 4.9 x 6
