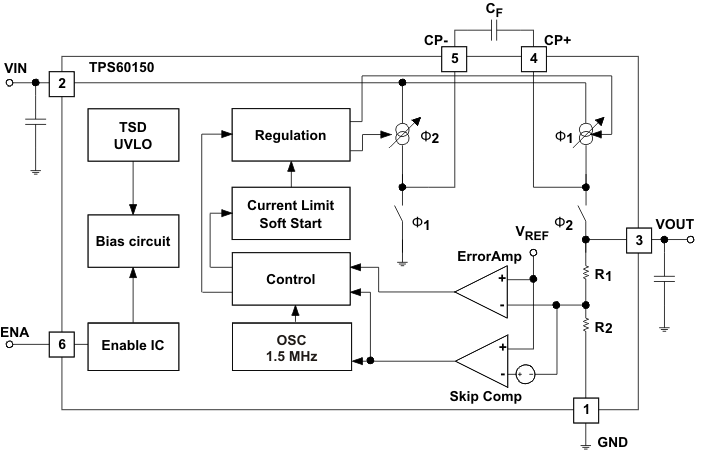

The TPS60150 device is a switched capacitor voltage converter that produces a regulated, low noise, and low-ripple output voltage of 5 V from an unregulated input voltage.
The 5-V output can supply a minimum of 140-mA current.
The TPS60150 device operates in skip mode when the load current falls less than 8 mA under typical condition. In skip mode operation, quiescent current is reduced to 90 µA.
Only 3 external capacitors are needed to generate the output voltage, therefore saving PCB space.
Inrush current is limited by the soft-start function during power on and power transient states.
The TPS60150 device operates over a free-air temperature range of –40°C to 85°C. The device is available with a small 2-mm × 2-mm 6-pin SON package (QFN).
| Vin (min) (V) | 2.7 |
| Vin (max) (V) | 5.5 |
| Vout (min) (V) | 5 |
| Vout (max) (V) | 5 |
| Iout (max) (A) | 0.14 |
| Regulated outputs (#) | 1 |
| Switching frequency (min) (kHz) | 1500 |
| Switching frequency (max) (kHz) | 1500 |
| Iq (typ) (mA) | 0.08 |
| Features | Enable |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| Type | Charge pump |
| WSON (DRV) | 6 | 4 mm² 2 x 2 |
