The LP38512-ADJ Fast-Transient Response Low-Dropout Voltage Regulator offers the highest-performance in meeting AC and DC accuracy requirements for powering Digital Cores. The LP38512-ADJ uses a proprietary control loop that enables extremely fast response to change in line conditions and load demands. Output Voltage DC accuracy is specified at 2.5% over line, load and full temperature range from -40°C to +125°C. The LP38512-ADJ is designed for inputs from the 2.5V, 3.3V, and 5.0V rail, is stable with 10 μF ceramic capacitors, and has an adjustable output voltage. The LP38512-ADJ provides excellent transient performance to meet the demand of high performance digital core ASICs, DSPs, and FPGAs found in highly-intensive applications such as servers, routers/switches, and base stations.
All trademarks are the property of their respective owners.
| Output options | Adjustable Output |
| Iout (max) (A) | 1.5 |
| Vin (max) (V) | 5.5 |
| Vin (min) (V) | 2.25 |
| Vout (max) (V) | 5 |
| Vout (min) (V) | 0.5 |
| Noise (µVrms) | 25 |
| Iq (typ) (mA) | 10 |
| Thermal resistance θJA (°C/W) | 67 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Features | Enable |
| Accuracy (%) | 2 |
| PSRR at 100 KHz (dB) | 28 |
| Dropout voltage (Vdo) (typ) (mV) | 300 |
| Operating temperature range (°C) | -40 to 125 |

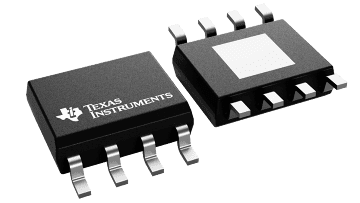

| HSOIC (DDA) | 8 | 29.4 mm² 4.9 x 6 |

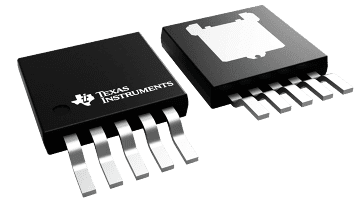

| TO-263 (NDQ) | 5 | 142.3416 mm² 10.16 x 14.01 |
