The REF50xxA-Q1 family of devices is low-noise, low-drift, very-high precision-voltage reference. These reference devices are capable of both sinking and sourcing, and are very robust with regard to line and load changes.

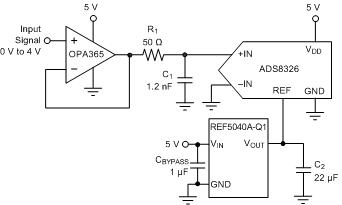

Excellent temperature drift (3 ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features combined with very low noise make the REF50xxA-Q1 family of devices ideal for use in high-precision data acquisition systems.
Each reference voltage is available in a standard-grade versions. The devices are offered in SO-8 packages and are specified from –40°C to 125°C.
| VO (V) | 2.048 |
| Initial accuracy (max) (%) | 0.1 |
| Temp coeff (max) (ppm/°C) | 8 |
| Vin (min) (V) | 2.7 |
| Vin (max) (V) | 18 |
| Iq (typ) (mA) | 0.8 |
| Rating | Automotive |
| TI functional safety category | Functional Safety-Capable |
| Features | TRIM/NR pin |
| LFN 0.1 to 10 Hz (typ) (µVPP) | 6 |
| Iout/Iz (max) (mA) | 10 |
| Operating temperature range (°C) | -40 to 125 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
