• Single Supply Voltage: 3.3 V
• Low Power Consumption: 3-mA Nominal Supply Current

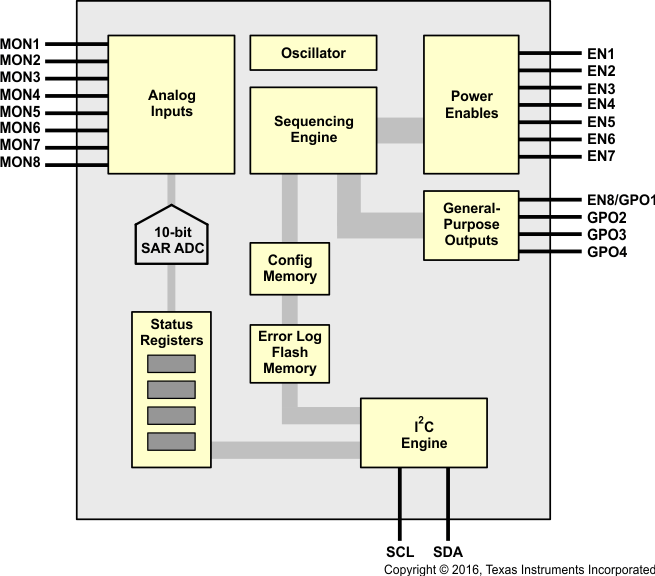

• Sequences and Monitors Eight Voltage Rails
• Rail Voltages Sampled With 3.2-mV Resolution
• Internal or External Voltage Reference
• Four Configurable Digital Outputs for Power-On-Reset and Other Functions
• Configurable Digital Output Polarity
• Flexible Rail Sequencing Based on Timeline (ms), Parent Rail Regulation Window, or Parent Rail Achieving Defined Threshold
• Independent Under- and Overvoltage Thresholds Per Rail
• Configurable Regulation Expiration Times Per Rail
• Flexible Alarm Processing: Ignore, Log Only, Retry n Times, Retry Continuously, Sequence, Parent Rail Can Shutdown Child Rails
• Alarm Conditions Logged With Timestamp: Under- and Overvoltage Glitch, Sustained Under- and Overvoltage, Rail Did Not Start
• On-Chip Flash for Storing User Data
• Error Logging to Flash for System Failure Analysis
• I²C™ Interface for Configuration and Monitoring
• Microsoft Windows™ GUI for Configuration and Monitoring
• APPLICATIONS
  • Telecommunications Switches
  • Servers
  • Networking Equipment
  • Test Equipment
  • Industrial
  • Any System Requiring Sequencing of Multiple Voltage Rails
