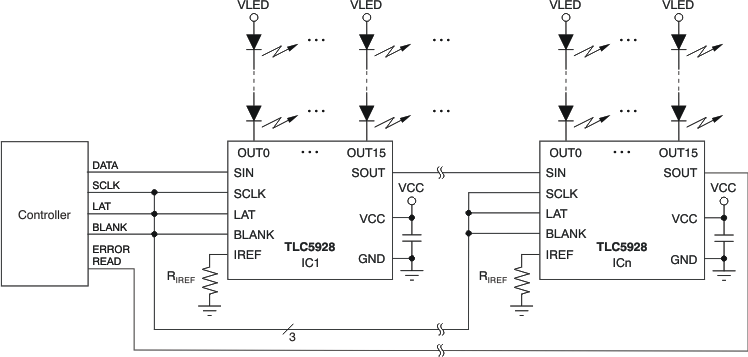

The TLC5928 is a 16-channel, constant-current sink LED driver. Each channel can be turned on/off by writing serial data to an internal register. The constant-current value of all 16 channels is set by a single external resistor.
The TLC5928 has two error detection circuits: one for LED open detection (LOD) and one for a pre-thermal warning (PTW). LOD detects a broken or disconnected LED and LEDs shorted to GND while the constant-current output is on. PTW indicates a high temperature condition.
PowerPAD is a trademark of Texas Instruments, Inc.
All other trademarks are the property of their respective owners.
| Features | Error Flag, LED Open Detection, ON/OFF LED Driver |
| Data transfer rate (typ) (MHz) | 35 |
| Ch to ch accuracy (typ) (±%) | 1 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

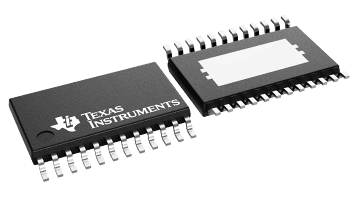

| HTSSOP (PWP) | 24 | 49.92 mm² 7.8 x 6.4 |

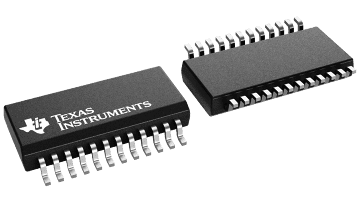

| SSOP (DBQ) | 24 | 51.9 mm² 8.65 x 6 |
| TSSOP (PW) | 24 | 49.92 mm² 7.8 x 6.4 |

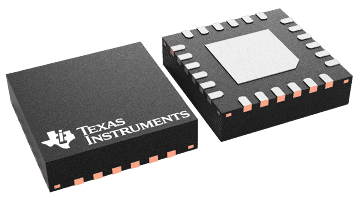

| VQFN (RGE) | 24 | 16 mm² 4 x 4 |
