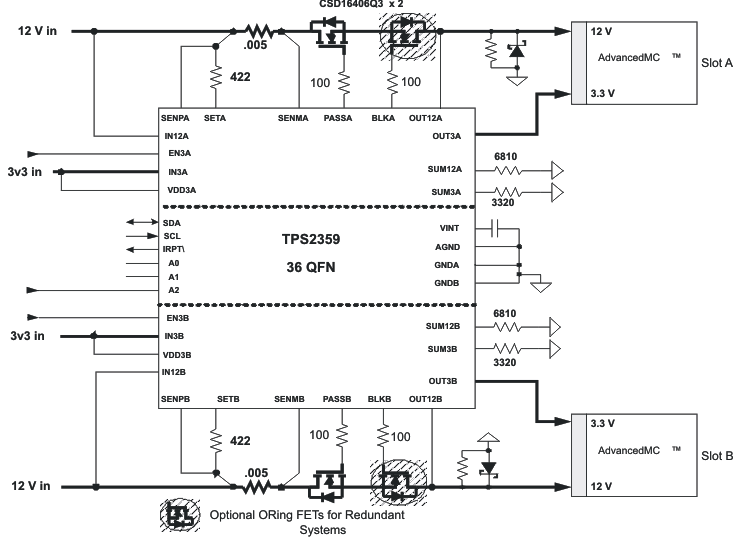

The TPS2359 dual-slot hot-plug controllers perform all necessary power interface functions for two AdvancedMC™ (Advanced Mezzanine Card) modules.
Two fully integrated 3.3-V channels provide inrush control, over-current protection, and FET ORing. Two 12-V channels provide the same functions using external FETs and sense resistors. The 3.3-V current limits are factory set to AdvancedMC™ compliant levels and the 12-V current limits are programmed using external sense resistors. The accurate current sense comparators of the TPS2359 satisfy the narrow ATCA™ AdvancedMC™ current limit requirements.
| FET | External |
| Vin (min) (V) | 8.5 |
| Vin (max) (V) | 15 |
| Vabsmax_cont (V) | 17 |
| Current limit (min) (A) | 0.01 |
| Current limit (max) (A) | 500 |
| Overcurrent response | current limiting |
| Fault response | Auto-retry, Latch-off |
| Soft start | Adjustable |
| Features | Current monitoring, Fault output, Power good signal, Reverse current blocking always |
| Rating | Catalog |
| Device type | eFuses and hot swap controllers |
| Operating temperature range (°C) | -40 to 85 |
| Function | Adjustable current limit, Current monitoring, Inrush current control, Power good signal, Reverse current blocking, Short circuit protection |

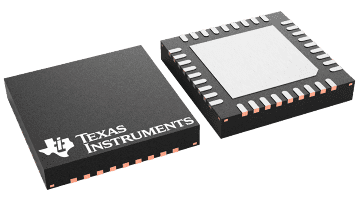

| VQFN (RHH) | 36 | 36 mm² 6 x 6 |
