TPS5430-Q1

TPS5430-Q1

正在供货

汽车类 5.5V 至 36V、500kHz 固定频率双路 3A 降压转换器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

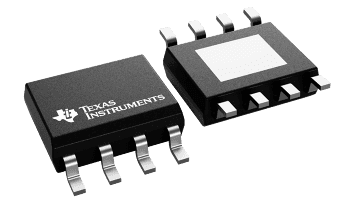

The TPS5430-Q1 is a high output current PWM converter that integrates a low-resistance high side N-channel MOSFET. Included on the substrate with the listed features are a high-performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions, an undervoltage lockout (UVLO) circuit to prevent start-up until the input voltage reaches 5.5 V, an internally set slow-start circuit to limit inrush currents, and a voltage feed-forward circuit to improve the transient response. Using the enable (ENA) pin, shutdown supply current is reduced to 18 µA typically. Other features include an active-high enable, overcurrent limiting, overvoltage protection (OVP), and thermal shutdown. To reduce design complexity and external component count, the TPS5430-Q1 feedback loop is internally compensated. The TPS5430-Q1 regulates a wide variety of power sources including 24-V buses.

The TPS5430-Q1 device is available in a thermally enhanced, easy-to-use 8-pin SOIC PowerPAD™ package. TI provides evaluation modules and the WEBENCH® software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.

  • Qualified for Automotive Applications
  • Wide Input Voltage Range: 5.5 V to 36 V
  • Up to 3-A Continuous (4-A Peak) Output Current
  • High Efficiency up to 95% Enabled by 110-mΩ
    Integrated MOSFET Switch
  • Wide Output Voltage Range: Adjustable Down to
    1.22 V With 1.5% Initial Accuracy
  • Internal Compensation Minimizes External Parts
    Count
  • Fixed 500-kHz Switching Frequency for Small
    Filter Size
  • Improved Line Regulation and Transient
    Response by Input Voltage Feed Forward
  • System Protected by Overcurrent Limiting,
    Overvoltage Protection, and Thermal Shutdown
  • –40°C to 125°C Operating Junction Temperature
    Range
  • Available in Small Thermally Enhanced 8-Pin
    SOIC PowerPAD Package
Vin (min) (V)5.5
Vin (max) (V)36
Vout (min) (V)1.22
Vout (max) (V)31
Iout (max) (A)3
Iq (typ) (mA)3
Switching frequency (min) (kHz)500
Switching frequency (max) (kHz)500
FeaturesEnable, Over Current Protection, Soft Start Fixed
Operating temperature range (°C)-40 to 125
RatingAutomotive
Regulated outputs (#)1
Control modeVoltage mode
Duty cycle (max) (%)89
TypeConverter
HSOIC (DDA)829.4 mm² 4.9 x 6
