The TLV411x single supply operational amplifiers provide output currents in excess of 300 mA at 5 V. This enables standard pin-out amplifiers to be used as high current buffers or in coil driver applications. The TLV4110 and TLV4113 come with a shutdown feature.

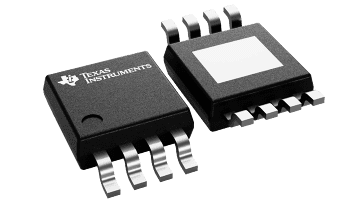

The TLV411x is available in the ultra small MSOP PowerPAD™ package, which offers the exceptional thermal impedance required for amplifiers delivering high current levels.
All TLV411x devices are offered in PDIP, SOIC (single and dual) and MSOP PowerPAD (dual).
PowerPAD is a trademark of Texas Instruments.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 6 |
| Iout (typ) (A) | 0.32 |
| GBW (typ) (MHz) | 2.7 |
| Slew rate (typ) (V/µs) | 1.57 |
| Vos (offset voltage at 25°C) (max) (mV) | 3.5 |
| Offset drift (typ) (V/°C) | 0.000003 |
| Iq per channel (typ) (mA) | 0.7 |
| Features | Shutdown |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |
| Input bias current (max) (pA) | 25 |
| CMRR (typ) (dB) | 68 |
| Rail-to-rail | In to V-, Out |
| Architecture | CMOS |
| HVSSOP (DGN) | 8 | 14.7 mm² 3 x 4.9 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
