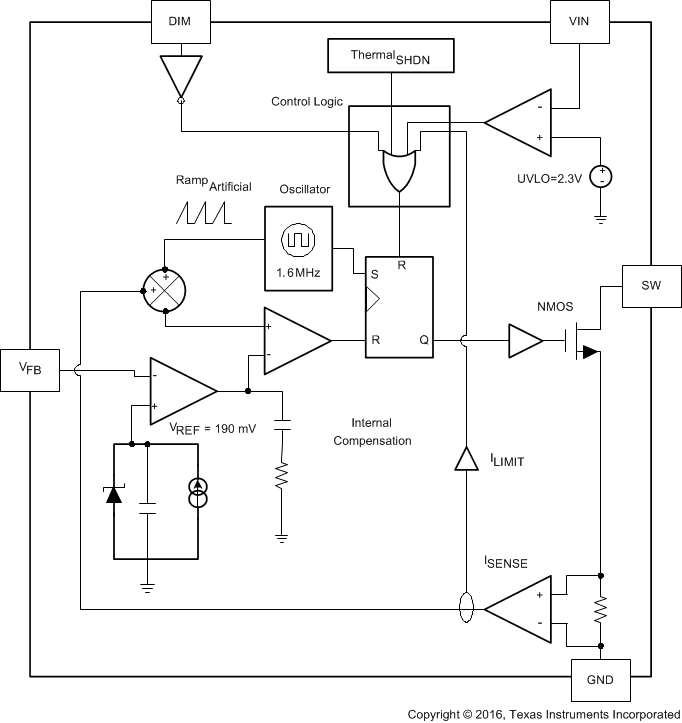

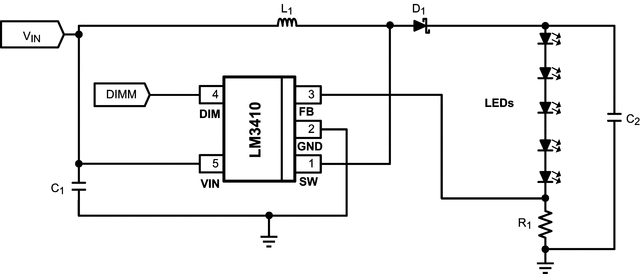

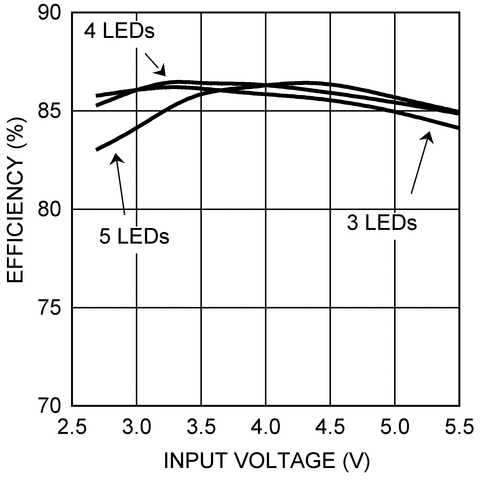

The LM3410 and LM3410-Q1 constant current LED driver are a monolithic, high frequency, PWM DC-DC converter, available in 6-pin WSON, 8-pin MSOP-PowerPad™, and 5-pin SOT-23 packages. With a minimum of external components the LM3410 and LM3410-Q1 are easy to use. It can drive 2.8-A (typical) peak currents with an internal 170-mΩ NMOS switch. Switching frequency is internally set to either 525 kHz or 1.6 MHz, allowing the use of extremely small surface mount inductors and chip capacitors. Even though the operating frequency is high, efficiencies up to 88% are easy to achieve. External shutdown is included, featuring an ultra-low standby current of 80 nA. The LM3410 and LM3410-Q1 use current-mode control and internal compensation to provide high-performance over a wide range of operating conditions. Additional features include PWM dimming, cycle-by-cycle current limit, and thermal shutdown.
| Input voltage type | DC/DC |
| Topology | Boost, SEPIC |
| Vin (min) (V) | 2.7 |
| Vin (max) (V) | 5.5 |
| Vout (max) (V) | 24 |
| Vout (min) (V) | 3 |
| Iout (max) (A) | 1.5 |
| Iq (typ) (mA) | 3.4 |
| Features | Enable/Shutdown, Soft Start, Thermal shutdown |
| Operating temperature range (°C) | -40 to 125 |
| Dimming method | PWM |
| Number of channels | 1 |
| Rating | Catalog |
| HVSSOP (DGN) | 8 | 14.7 mm² 3 x 4.9 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |

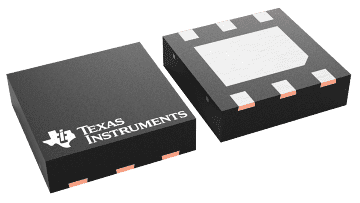

| WSON (NGG) | 6 | 9 mm² 3 x 3 |
