• 1.6-A, 1.0-A, or 0.8-A, 97% Efficient Step-Down Converter for System Voltage (VDCDC1)
  • 3.3 V or 2.80 V or Adjustable
• 1.6-A, 1.0-A, or 0.8-A, up to 95% Efficient Step-Down Converter for Memory Voltage (VDCDC2)
  • 1.8 V or 2.5 V or Adjustable
• 0.8-A, 90% Efficient Step-Down Converter for Processor Core (VDCDC3)
• Two Selectable Voltages for VDCDC3

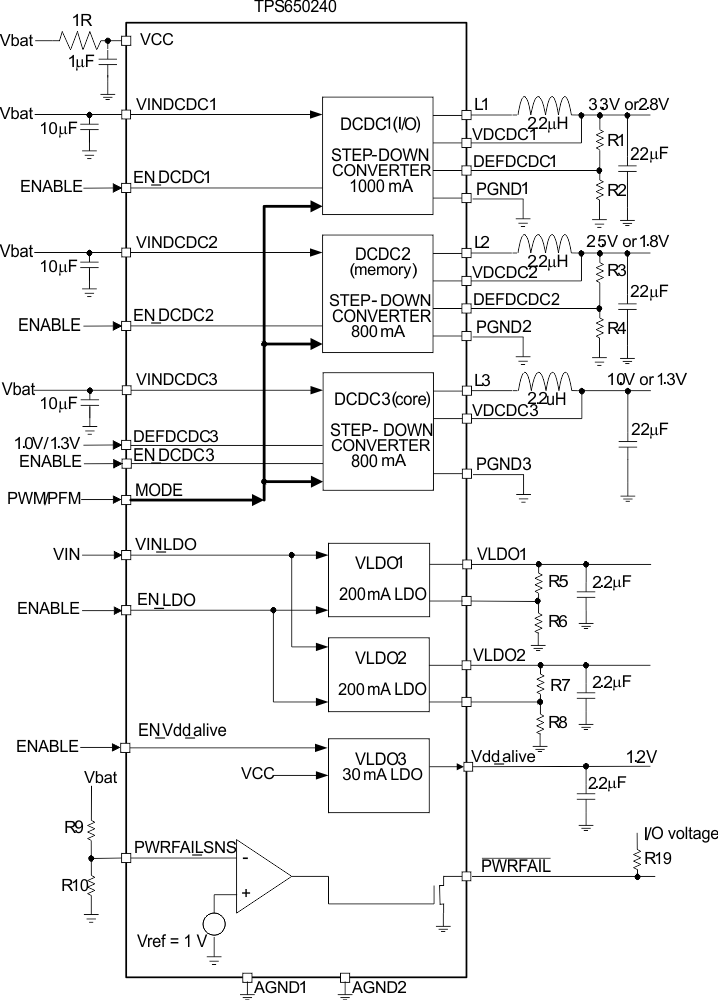

  • TPS650240:
    • DEFDCDC3 = LOW: V_O = 1.0 V
    • DEFDCDC3 = HIGH: V_O = 1.3 V
  • TPS650241:
    • DEFDCDC3 = LOW: V_O = 0.9 V
    • DEFDCDC3 = HIGH: V_O= 1.375 V
  • TPS650242:
    • DEFDCDC3 = LOW: V_O = 1.0 V
    • DEFDCDC3 = HIGH: V_O = 1.5 V
  • TPS650243:
    • DEFDCDC3 = LOW: V_O = 1.0 V
    • DEFDCDC3 = HIGH: V_O = 1.2 V
  • TPS650244:
    • DEFDCDC3 = LOW: V_O = 1.55 V
    • DEFDCDC3 = HIGH: V_O = 1.6 V
  • TPS650245:
    • DEFDCDC3 = LOW: V_O = 0.9 V
    • DEFDCDC3 = HIGH: V_O = 1.1 V
• 30-mA LDO for Vdd_alive
• 2 × 200-mA General-Purpose LDOs (LDO1 and LDO2)
• Dynamic Voltage Management for Processor Core
• LDO1 and LDO2 Voltage Externally Adjustable
• Separate Enable Pins for Inductive Converters
• 2.25-MHz Switching Frequency
• 85-μA Quiescent Current
• Thermal Shutdown Protection
