The LM2756 is a highly integrated, switched-capacitor, multi-display LED driver that can drive up to 8 LEDs in parallel with a total output current of 180mA. Regulated internal current sources deliver excellent current and brightness matching in all LEDs.

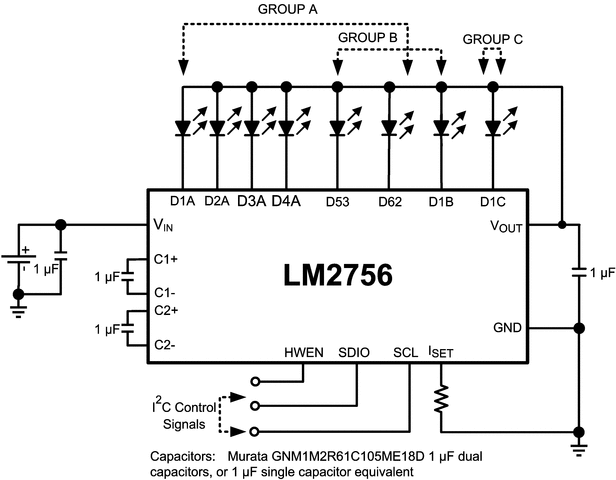

The LED driver current sinks are split into three independently controlled groups. The primary group (Group A) can be configured to drive four, five or six LEDs for use in the main phone display, while the secondary group (Group B) can be configured to drive one, two or three LEDs for driving secondary displays, keypads and/or indicator LEDs. An additional driver, D1C, is provided for additional indicator lighting functions.

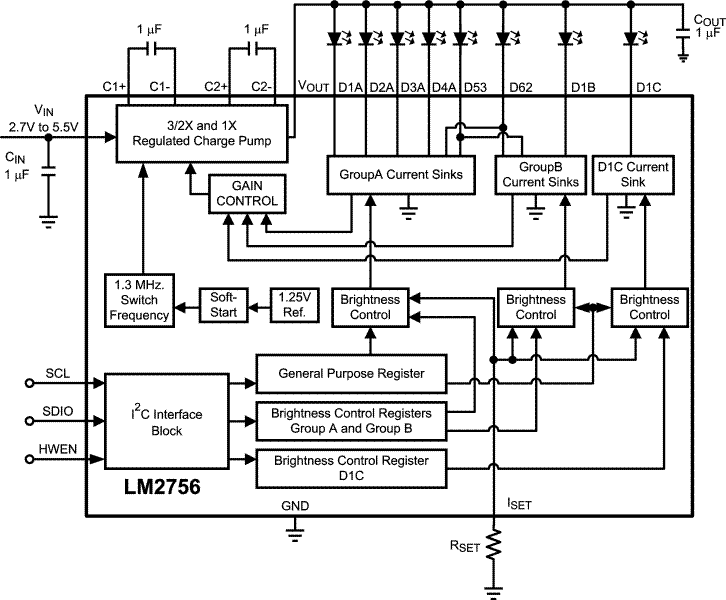

The device provides excellent efficiency without the use of an inductor by operating the charge pump in a gain of 3/2 or in Pass-Mode. The proper gain for maintaining current regulation is chosen, based on LED forward voltage, so that efficiency is maximized over the input voltage range.

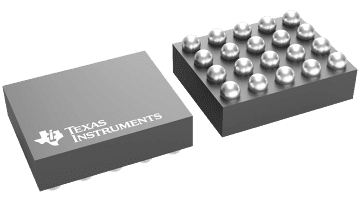

The LM2756 is available in TI's tiny 20-bump, 0.4mm pitch, thin DSBGA package.
All trademarks are the property of their respective owners.
| Number of channels | 8 |
| Vin (min) (V) | 2.7 |
| Vin (max) (V) | 5.5 |
| Vout (min) (V) | 2.7 |
| Vout (max) (V) | 6 |
| Type | Capacitive |
| Switching frequency (max) (kHz) | 1600 |
| Duty cycle (max) (%) | 100 |
| LED current per channel (mA) | 30 |

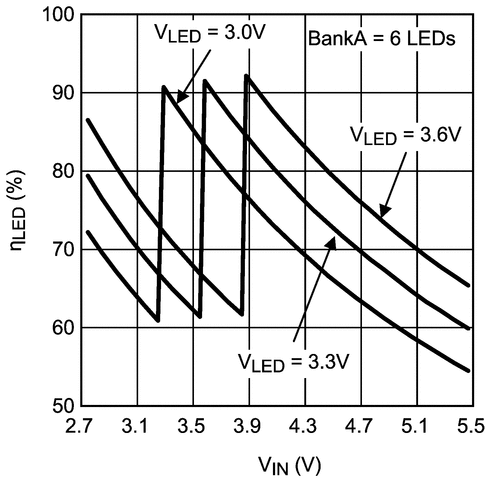

| Peak efficiency (%) | 92 |
| Topology | Boost, Current Sink |
| Features | I2C control |
| Operating temperature range (°C) | -30 to 85 |
| Rating | Catalog |
| DSBGA (YFQ) | 20 | 3.96 mm² 2.2 x 1.8 |
