The TPS3809 family of supervisory circuits provides circuit initialization and timing supervision, primarily for DSPs and processor-based systems.

During power-on, RESET is asserted when the supply voltage V_DD becomes higher than 1.1 V. Thereafter, the supervisory circuit monitors V_DD and keeps RESET active as long as V_DD remains below the threshold voltage V_IT. An internal timer delays the return of the output to the inactive state (high) to ensure proper system reset. The delay time, t_d(typ) = 200 ms, starts after V_DD has risen above the V_IT. When the supply voltage drops below the V_IT, the output becomes active (low) again. No external components are required. All the devices of this family have a fixed-sense V_IT set by an internal voltage divider.

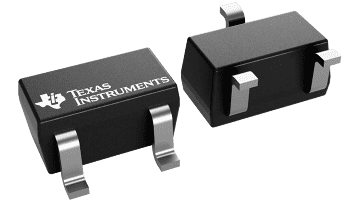

The product spectrum is designed for supply voltages of 2.5 V, 3 V, 3.3 V, and 5 V. The circuits are available in a 3-pin SOT-23 package. The TPS3809 devices are characterized for operation over a temperature range of -55°C to 125°C.
