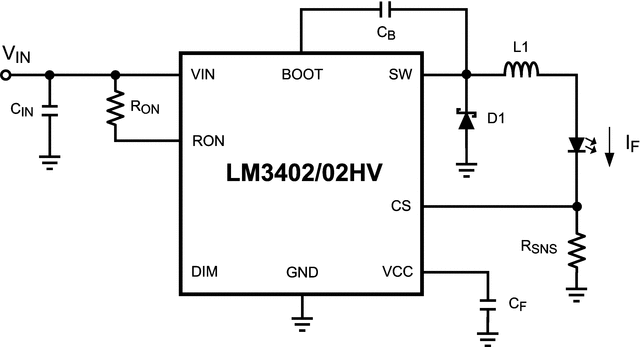

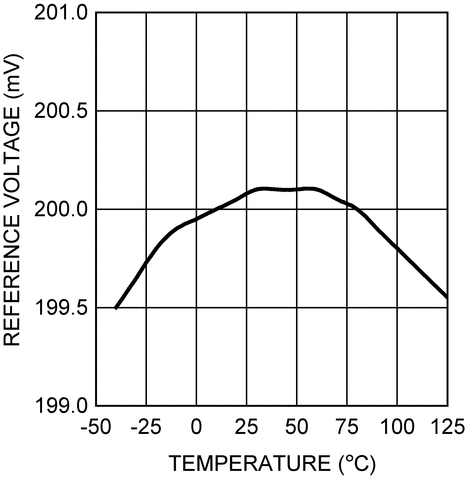

The LM3402/HV are monolithic switching regulators designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, they contain a high-side N-channel MOSFET switch with a current limit of 735 mA (typical) for step-down (Buck) regulators. Hysteretic control with controlled ON-time coupled with an external resistor allow the converter output voltage to adjust as needed to deliver a constant current to series and series - parallel connected arrays of LEDs of varying number and type, LED dimming by pulse width modulation (PWM), broken/open LED protection, low-power shutdown and thermal shutdown complete the feature set.
For all available packages, see the orderable addendum at the end of the data sheet.| Input voltage type | DC/DC |
| Topology | Buck |
| Vin (min) (V) | 6 |
| Vin (max) (V) | 42 |
| Vout (max) (V) | 40 |
| Vout (min) (V) | 0.2 |
| Iout (max) (A) | 0.5 |
| Iq (typ) (mA) | 0.6 |
| Features | Adjustable Switch Frequency, Enable/Shutdown, Integrated Switch, Thermal shutdown |
| Operating temperature range (°C) | -40 to 125 |
| Dimming method | PWM |
| Number of channels | 1 |
| Rating | Catalog |
| HSOIC (DDA) | 8 | 29.4 mm² 4.9 x 6 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
