The LP3879 is a 800 mA fixed-output voltage regulator designed to provide high performance and low noise in applications requiring output voltages between 1.0V and 1.2V.
Using an optimized VIP (Vertically Integrated PNP) process, the LP3879 delivers superior performance:
Ground Pin Current: Typically 5.5 mA @ 800 mA load, and 200 µA @ 100 µA load.
Low Power Shutdown: The LP3879 draws less than 10 μA quiescent current when shutdown pin is pulled low.
Precision Output: Ensured output voltage accuracy is 1% at room temperature.
Low Noise: Broadband output noise is only 18 μV (typical) with 10 nF bypass capacitor.
All trademarks are the property of their respective owners.
| Output options | Fixed Output |
| Iout (max) (A) | 0.8 |
| Vin (max) (V) | 6 |
| Vin (min) (V) | 2.5 |
| Vout (max) (V) | 1.2 |
| Vout (min) (V) | 1 |
| Fixed output options (V) | 1, 1.2 |
| Noise (µVrms) | 18 |
| Iq (typ) (mA) | 0.2 |
| Thermal resistance θJA (°C/W) | 40 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Features | Enable |
| Accuracy (%) | 3 |

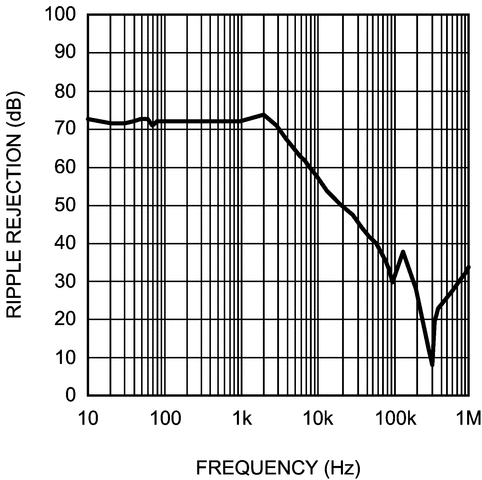

| PSRR at 100 KHz (dB) | 35 |
| Dropout voltage (Vdo) (typ) (mV) | 475 |
| Operating temperature range (°C) | -40 to 125 |

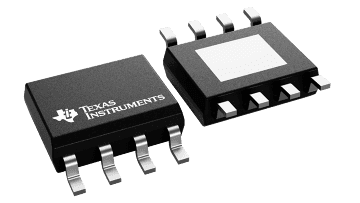

| HSOIC (DDA) | 8 | 29.4 mm² 4.9 x 6 |

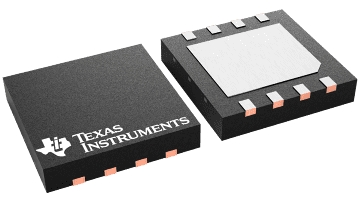

| WSON (NGT) | 8 | 16 mm² 4 x 4 |
