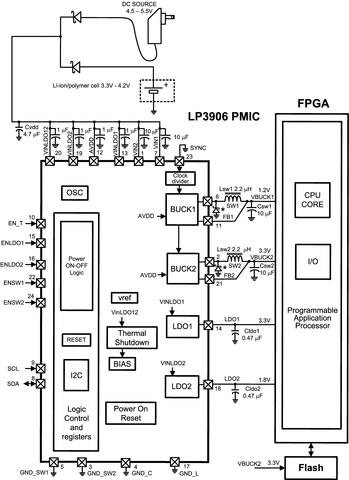

The LP3906 is a multi-function, programmable Power Management Unit, optimized for low power FPGAs, Microprocessors and DSPs.
This device integrates two highly efficient 1.5A Step-Down DC/DC converters with dynamic voltage management (DVM), two 300mA Linear Regulators and a 400kHz I2C compatible interface to allow a host controller access to the internal control registers of the LP3906. The LP3906 additionally features programmable power-on sequencing and is offered in a tiny 5 x 4 x 0.8mm WQFN-24 pin package.
All trademarks are the property of their respective owners.
| Regulated outputs (#) | 4 |
| Configurability | Factory programmable, Software configurable |
| Vin (min) (V) | 2.7 |
| Vin (max) (V) | 5.5 |
| Iout (max) (A) | 1.5 |
| Features | Comm control, Dynamic voltage scaling, Enable, Overcurrent protection, Synchronous rectification, Thermal shutdown, UVLO fixed |
| Step-up DC/DC converter | 0 |
| Step-down DC/DC converter | 2 |
| Step-down DC/DC controller | 0 |
| Step-up DC/DC controller | 0 |
| LDO | 2 |
| Iq (typ) (mA) | 0.07 |
| Rating | Catalog |
| Switching frequency (max) (kHz) | 2000 |
| Operating temperature range (°C) | -40 to 85 |
| Processor supplier | Generic |
| Processor name | Generic |
| Shutdown current (ISD) (typ) (µA) | 0.04 |
| Switching frequency (typ) (kHz) | 2000 |
| WQFN (NHZ) | 24 | 20 mm² 5 x 4 |
