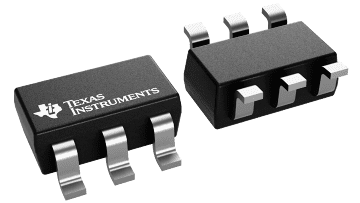

The REF32xx is a very low drift, micropower, low-dropout, precision voltage reference family available in the tiny SOT23-6 package.
The small size and low power consumption (120&micr;A max) of the REF32xx make it ideal for portable and battery-powered applications. This reference is stable with any capacitive load.
The REF32xx can be operated from a supply as low as 5mV above the output voltage, under no load conditions. All models are specified for the wide temperature range of –40°C to +125°C.
| VO (V) | 2.048 |
| Initial accuracy (max) (%) | 0.2 |
| Temp coeff (max) (ppm/°C) | 20 |
| Vin (min) (V) | 2.098 |
| Vin (max) (V) | 5.5 |
| Iq (typ) (mA) | 0.1 |
| Rating | Catalog |
| Features | Enable pin |
| LFN 0.1 to 10 Hz (typ) (µVPP) | 27 |
| Iout/Iz (max) (mA) | 10 |
| Operating temperature range (°C) | -40 to 125 |
| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |
