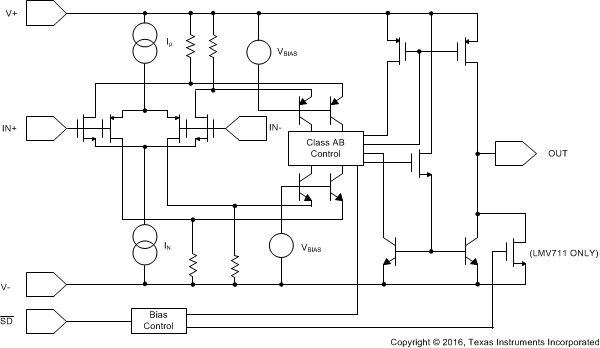

The LMV710-N, LMV711-N, and LMV715-N are BiCMOS operational amplifiers with a CMOS input stage. These devices have greater than RR input common mode voltage range, rail-to-rail output and high output current drive. They offer a bandwidth of 5 MHz and a slew rate of 5 V/µs.
On the LMV711 and LMV715, a separate shutdown pin can be used to disable the device and reduces the supply current to 0.2 µA (typical). They also feature a turnon time of less than 10 µs. It is an ideal solution for power-sensitive applications, such as cellular phone, pager, palm computer, and so forth. In addition, once the LMV715 is in shutdown the output is tri-stated.
The LMV710 is offered in the space-saving, 5-pin SOT-23 package. The LMV711 and LMV715 are offered in the space saving 6-pin SOT-23 package.
The LMV71x-N devices are designed to meet the demands of low power, low cost, and small size required by cellular phones and similar battery-powered portable electronics.
| Number of channels | 1 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.7 |
| Rail-to-rail | In, Out |
| GBW (typ) (MHz) | 5 |
| Slew rate (typ) (V/µs) | 5 |
| Vos (offset voltage at 25°C) (max) (mV) | 3 |
| Iq per channel (typ) (mA) | 1.17 |
| Vn at 1 kHz (typ) (nV√Hz) | 20 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Offset drift (typ) (µV/°C) | 5 |
| Input bias current (max) (pA) | 10 |
| CMRR (typ) (dB) | 70 |
| Iout (typ) (A) | 0.04 |
| Architecture | CMOS |
| Input common mode headroom (to negative supply) (typ) (V) | -0.3 |
| Input common mode headroom (to positive supply) (typ) (V) | 0.3 |
| Output swing headroom (to negative supply) (typ) (V) | 0.01 |
| Output swing headroom (to positive supply) (typ) (V) | -0.02 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
