The LP3996 is a dual low dropout regulator with power-on-reset circuit. The first regulator can source 150 mA, while the second is capable of sourcing 300 mA and has a power-on-reset function included.

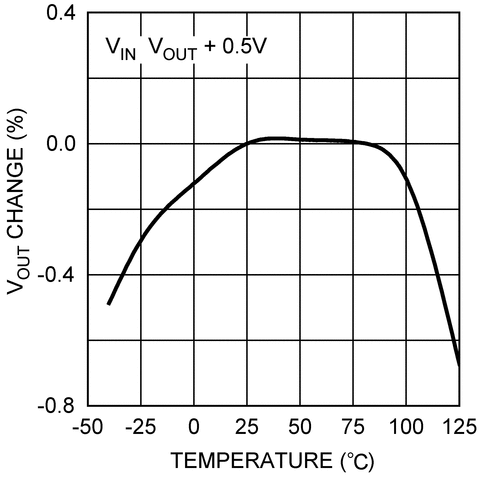

The LP3996 provides 1.5% accuracy requiring an ultra low quiescent current of 35 µA. Separate enable pins allow each output of the LP3996 to be shut down, drawing virtually zero current.

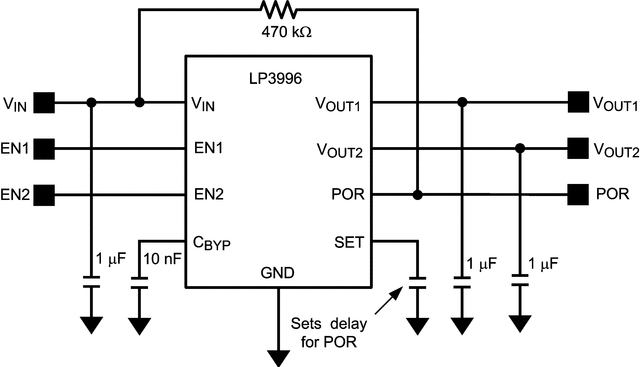

The LP3996 is designed to be stable with small footprint ceramic capacitors down to 1 µF. An external capacitor may be used to set the POR delay time as required.

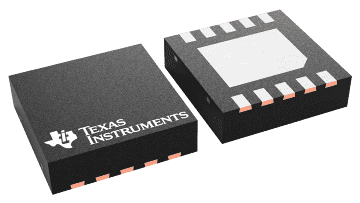

The LP3996 is available in fixed output voltages and comes in a 10-pin, 3 mm × 3 mm package.
| Output options | Dual output, Fixed Output |
| Iout (max) (A) | 0.15 |
| Vin (max) (V) | 6 |
| Vin (min) (V) | 2 |
| Vout (max) (V) | 3.3 |
| Vout (min) (V) | 0.8 |
| Fixed output options (V) | 0.8, 1.5, 1.8, 2.5, 3, 3.3 |
| Noise (µVrms) | 36 |
| Iq (typ) (mA) | 0.035 |
| Thermal resistance θJA (°C/W) | 55 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 1 |
| Regulated outputs (#) | 2 |
| Features | Enable, Power good |
| Accuracy (%) | 2.75 |
| PSRR at 100 KHz (dB) | 45 |
| Dropout voltage (Vdo) (typ) (mV) | 210 |
| Operating temperature range (°C) | -40 to 85 |
| WSON (DSC) | 10 | 9 mm² 3 x 3 |
