The TL750M series devices are low-dropout positive voltage regulators specifically designed for battery-powered systems. The TL750M devices incorporate onboard overvoltage and current-limiting protection circuitry to protect the devices and the regulated system. The devices are fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current, even during full-load conditions, makes the TL750M series ideal for standby power systems.
The TL750M offers 5-V, 8-V, 10-V, and 12-V options. The devices are characterized for operation over the virtual junction temperature range 0°C to 125°C.
| Output options | Fixed Output |
| Iout (max) (A) | 0.75 |
| Vin (max) (V) | 26 |
| Vin (min) (V) | 6 |
| Vout (max) (V) | 12 |
| Vout (min) (V) | 5 |
| Fixed output options (V) | 5, 8, 10, 12 |
| Noise (µVrms) | 500 |
| Iq (typ) (mA) | 5 |
| Thermal resistance θJA (°C/W) | 28 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2.5 |
| Dropout voltage (Vdo) (typ) (mV) | 600 |
| Operating temperature range (°C) | 0 to 125 |
| TO-220 (KCS) | 3 | 46.228 mm² 10.16 x 4.55 |
| TO-252 (KVU) | 3 | 66.726 mm² 6.6 x 10.11 |

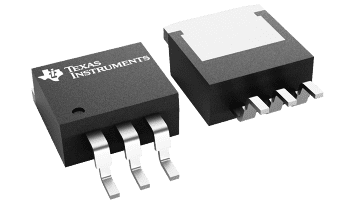

| TO-263 (KTT) | 3 | 154.8384 mm² 10.16 x 15.24 |
