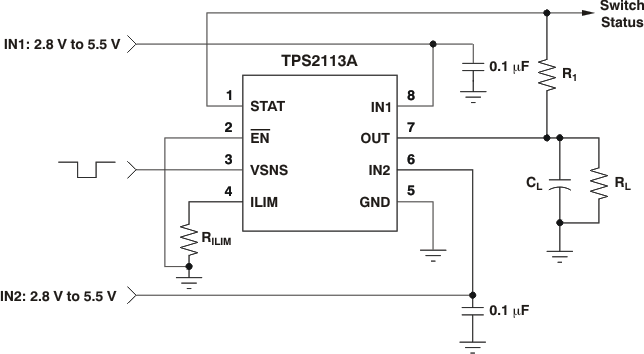

The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.
| Number of input channels | 2 |
| IN1, IN2 input voltage (min) (V) | 2.8 |
| IN1, IN2 input voltage (max) (V) | 5.5 |
| IN1 rDS(on) (typ) (mΩ) | 84 |
| IN2 rDS(on) (typ) (mΩ) | 84 |
| IN1 output current (max) (A) | 1.25, 2 |
| IN2 output current (max) (A) | 1.25, 2 |
| Rating | Catalog |
| Quiescent current (Iq) (µA) | 0.5 |
| Operating temperature range (°C) | -40 to 85 |
| FET | Internal |
| Imax (A) | 1.25 |
| Features | Adjustable current limit, Inrush current control, Power good, Reverse current blocking, Thermal shutdown |
| Device type | Power muxes |
| Function | Power good signal, Reverse current blocking, Thermal shutdown |
| TSSOP (PW) | 8 | 19.2 mm² 3 x 6.4 |

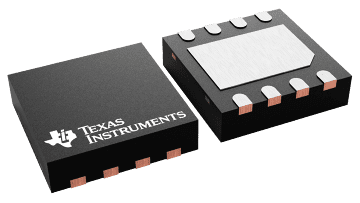

| VSON (DRB) | 8 | 9 mm² 3 x 3 |
