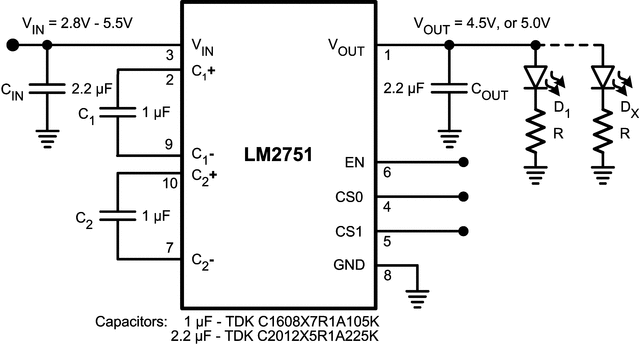

The LM2751 is a constant frequency switched capacitor charge pump with regulated output voltage options of 4.5V, and 5.0V. Over the input voltage range of 2.8V to 5.5V the LM2751 provides up to 150mA of output current and requires only four low-cost ceramic capacitors.
The LM2751 provides excellent efficiency without the use of an inductor by operating the charge pump in a gain of 3/2 or 2. The proper gain for maintaining regulation is chosen so that efficiency is maximized over the input voltage range.
LM2751 uses constant frequency pre-regulation to minimize conducted noise on the input and provide a predictable switching frequency. The switching frequency is programmable to 725kHz, 300kHz, 37kHz, or 9.5kHz.

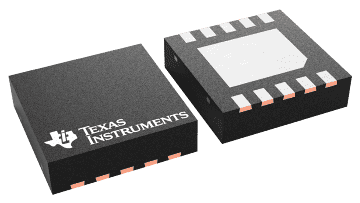

LM2751 is available in a 10-pin SON No-Pullback Package.
All trademarks are the property of their respective owners.
| Number of channels | 1 |
| LED current per channel (mA) | 150 |
| LED configuration | Parallel, Series, Single |
| Program memory | No |
| Topology | Boost |
| Programmable ramp control | No |
| Vin (min) (V) | 2.8 |
| Vin (max) (V) | 5.5 |
| Iout (max) (A) | 0.15 |
| Features | Enable/Shutdown, GPIO interface |
| Iq (typ) (mA) | 1 |
| Shutdown current (ISD) (typ) (µA) | 0.77 |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| WSON (DSC) | 10 | 9 mm² 3 x 3 |
