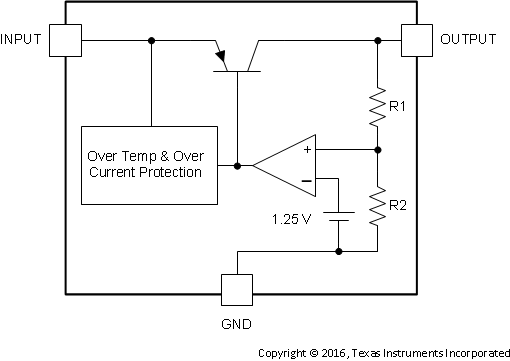

The TLV2217 family of low-dropout regulators offers a variety of fixed-voltage options that offer a maximum continuous input voltage of 16 V, making them more versatile than CMOS regulators. Utilizing a PNP pass element, these regulators are capable of sourcing 500 mA of current, with a specified maximum dropout of 500 mV (3.3-V and 2.5-V options), making these regulators ideal for low-voltage applications. Additionally, the TLV2217 regulators offer very tight output accuracy of ±2% across operating load and temperature ranges. Other convenient features the regulators provide are internal overcurrent limiting, thermal-overload protection, and overvoltage protection. The TLV2217 family of regulators is available in fixed voltages of 1.8 V, 2.5 V, and 3.3 V.
| Output options | Fixed Output |
| Iout (max) (A) | 0.5 |
| Vin (max) (V) | 12 |
| Vin (min) (V) | 3 |
| Vout (max) (V) | 3.3 |
| Vout (min) (V) | 1.8 |
| Fixed output options (V) | 1.8, 2.5, 3.3 |
| Noise (µVrms) | 500 |
| Iq (typ) (mA) | 2 |
| Thermal resistance θJA (°C/W) | 23 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 22 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 2.5 |
| Dropout voltage (Vdo) (typ) (mV) | 500 |
| Operating temperature range (°C) | 0 to 125 |

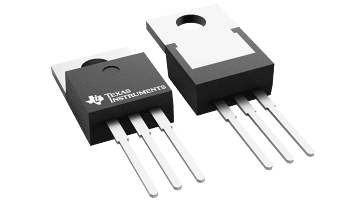

| TO-220 (KCS) | 3 | 46.228 mm² 10.16 x 4.55 |

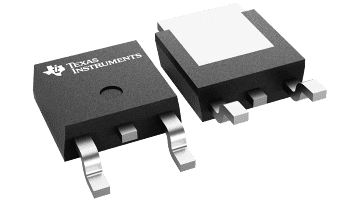

| TO-252 (KVU) | 3 | 66.726 mm² 6.6 x 10.11 |
| TSSOP (PW) | 20 | 41.6 mm² 6.5 x 6.4 |
