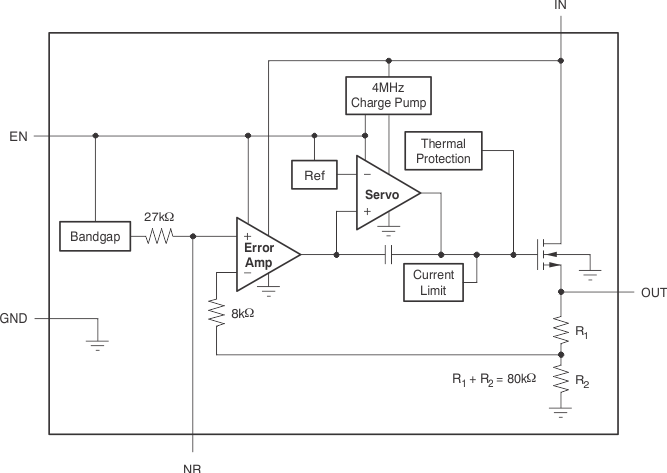

The TPS736xx family of low-dropout (LDO) linear voltage regulators uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. It also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current.
The TPS736xx uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1 µA and ideal for portable applications. The extremely low output noise (30 µVRMS with 0.1-µF CNR) is ideal for powering VCOs. These devices are protected by thermal shutdown and foldback current limit.
C2000 Is a trademark of Texas Instruments
All other trademarks are the property of their respective owners
| Output options | Adjustable Output, Fixed Output |
| Iout (max) (A) | 0.4 |
| Vin (max) (V) | 5.5 |
| Vin (min) (V) | 1.7 |
| Vout (max) (V) | 5.4 |
| Vout (min) (V) | 1.2 |
| Fixed output options (V) | 1.2, 1.25, 1.5, 1.6, 1.8, 1.9, 2.5, 3, 3.2, 3.3, 4.3 |
| Noise (µVrms) | 30 |
| Iq (typ) (mA) | 0.4 |
| Thermal resistance θJA (°C/W) | 53, 57.8 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 0 |
| Regulated outputs (#) | 1 |
| Features | Enable, Foldback Overcurrent protection, Reverse Current Protection |
| Accuracy (%) | 1 |
| PSRR at 100 KHz (dB) | 32 |
| Dropout voltage (Vdo) (typ) (mV) | 75 |
| Operating temperature range (°C) | -40 to 125 |

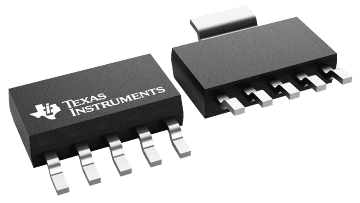

| SOT-223 (DCQ) | 6 | 45.89 mm² 6.5 x 7.06 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| VSON (DRB) | 8 | 9 mm² 3 x 3 |
