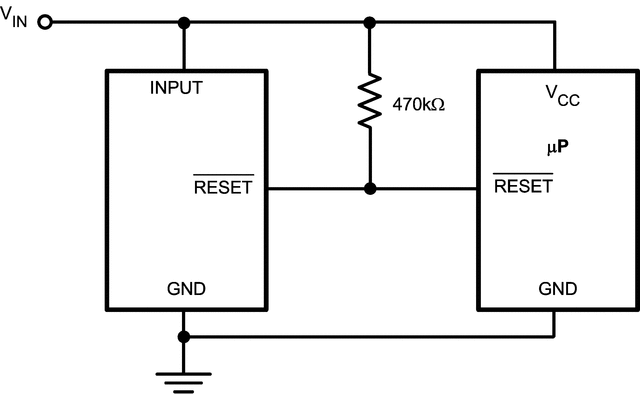

The LM8364 series are micropower undervoltage sensing circuits that are ideal for use in battery powered microprocessor based systems, where extended battery life is a key requirement.

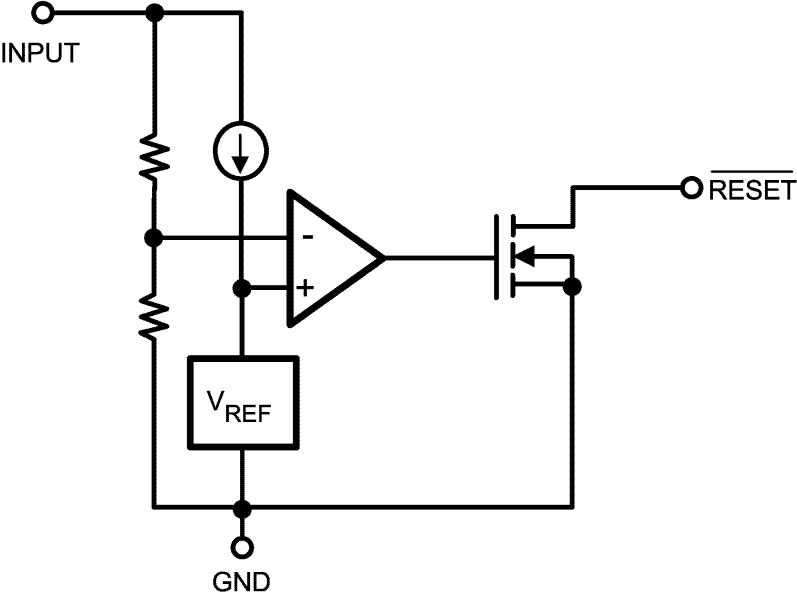

A range of threshold voltages from 2.0V to 4.5V are available with an active low open drain output. These devices feature a very low quiescent current of 0.65µA typical. The LM8364 series features a highly accurate voltage reference, a comparator with precise thresholds and built-in hysterisis to prevent erratic reset operation, and ensured Reset operation down to 1.0V with extremely low standby current.
These devices are available in the space saving SOT-23 5-pin surface mount package. For other undervoltage thresholds and output options, please contact Texas Instruments.
All trademarks are the property of their respective owners.
| Number of supplies monitored | 1 |
| Threshold voltage 1 (typ) (V) | 2 |
| Features | Ease-of-use |
| Reset threshold accuracy (%) | 2.5 |
| Iq (typ) (mA) | 0.00065 |
| Output driver type/reset output | Active-low, Open-drain |
| Time delay (ms) | 0 |
| Supply voltage (min) (V) | 1 |
| Supply voltage (max) (V) | 6 |
| Rating | Catalog |
| Watchdog timer WDI (s) | None |
| Operating temperature range (°C) | -40 to 85 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
