The TPS40060 and TPS40061 are high-voltage, wide input (10 V to 55 V) synchronous, step-down converters.
This family of devices offers design flexibility with a variety of user programmable functions, including; soft-start, UVLO, operating frequency, voltage feed-forward, high-side current limit, and loop compensation. These devices are also synchronizable to an external supply.

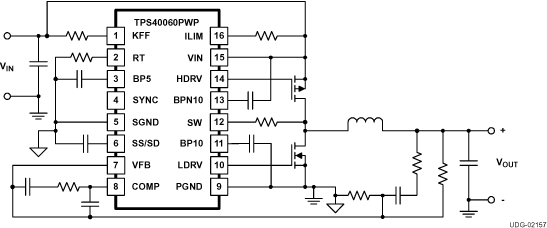

The TPS40060 and TPS40061 incorporate MOSFET gate drivers for external P-channel high-side and N-channel synchronous rectifier (SR) MOSFETs. Gate drive logic incorporates anti-cross conduction circuitry to prevent simultaneous high-side and synchronous rectifier conduction.
PowerPAD is a trademark of Texas Instruments.
| Vin (min) (V) | 10 |
| Vin (max) (V) | 55 |
| Vout (min) (V) | 0.7 |
| Vout (max) (V) | 45 |
| Iout (max) (A) | 10 |
| Iq (typ) (mA) | 1.5 |
| Switching frequency (min) (kHz) | 100 |
| Switching frequency (max) (kHz) | 1000 |
| Features | Enable, Frequency synchronization, Synchronous Rectification |
| Operating temperature range (°C) | -40 to 85 |
| Regulated outputs (#) | 1 |
| Number of phases | 1 |
| Rating | Catalog |
| Control mode | Voltage mode |
| Type | Controller |

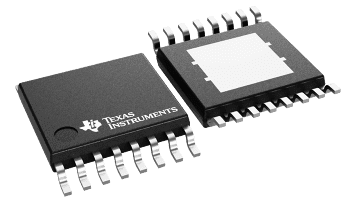

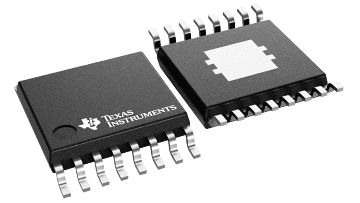

| HTSSOP (PWP) | 16 | 32 mm² 5 x 6.4 |
