The REF29xx is a precision, low-power, low-voltage dropout voltage reference family available in a tiny 3‑pin SOT-23 package.
The small size and low power consumption (50 µA maximum) of the REF29xx make it ideal for portable and battery-powered applications. The REF29xx does not require a load capacitor, but it is stable with any capacitive load.
Unloaded, the REF29xx can be operated with supplies within 1 mV of output voltage. All models are specified for the wide temperature range, –40°C to 125°C.
| VO (V) | 2.5 |
| Initial accuracy (max) (%) | 2 |
| Temp coeff (max) (ppm/°C) | 100 |
| Vin (min) (V) | 2.501 |
| Vin (max) (V) | 5.5 |
| Iq (typ) (mA) | 0.042 |
| Rating | Catalog |
| LFN 0.1 to 10 Hz (typ) (µVPP) | 28 |
| Iout/Iz (max) (mA) | 25 |
| Operating temperature range (°C) | -40 to 125 |

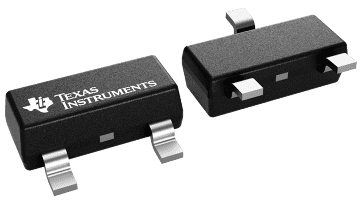

| SOT-23 (DBZ) | 3 | 6.9204 mm² 2.92 x 2.37 |
