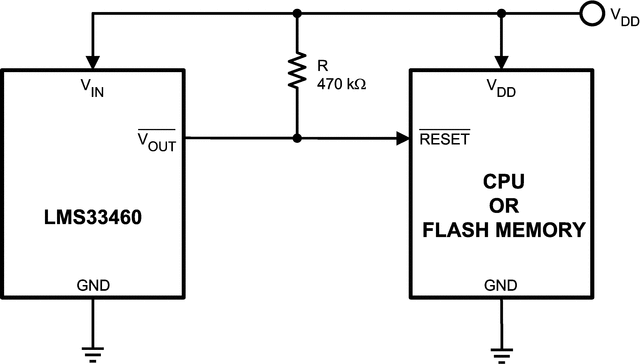

The LMS33460 device is an undervoltage detector with a 3‑V threshold and extremely low power consumption. The LMS33460 is specifically designed to accurately monitor power supplies. It is especially suited to battery-powered systems where low quiescent current and small size are required. This IC generates an active output whenever the input voltage drops below 3 V.

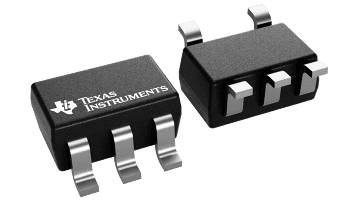

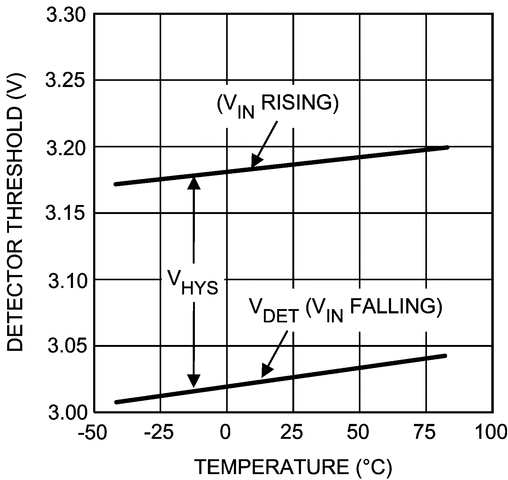

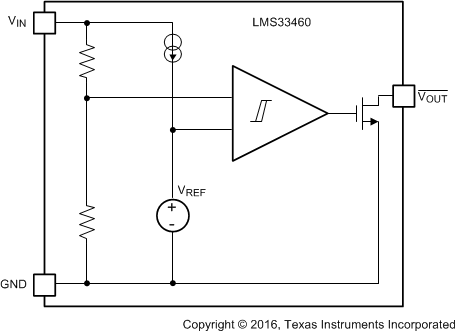

This part uses a precision on-chip voltage reference and a comparator to measure the input voltage. Built-in hysteresis helps to prevent erratic operation in the presence of noise. The UVD is available in the ultra-miniature 5-pin SC70 package.
| Number of supplies monitored | 1 |
| Threshold voltage 1 (typ) (V) | 3 |
| Features | Undervoltage monitor only |
| Reset threshold accuracy (%) | 5 |
| Iq (typ) (mA) | 0.001 |
| Output driver type/reset output | Active-low, Open-drain |
| Time delay (ms) | 0 |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 7 |
| Rating | Catalog |
| Watchdog timer WDI (s) | None |
| Operating temperature range (°C) | -40 to 85 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |
