The TPS6200x devices are a family of low-noise synchronous step-down DC/DC converters that are ideally suited for systems powered from a 1-cell Li-ion battery or from a 2- to 3-cell NiCd, NiMH, or alkaline battery. The TPS6200x operates typically down to an input voltage of 1.8 V, with a specified minimum input voltage of 2 V.
The TPS62000 operates over a free-air temperature range of –40°C to 85°C.The device is available in the 10-pin (DGS) microsmall outline package (VSSOP).
| Vin (min) (V) | 2 |
| Vin (max) (V) | 5.5 |
| Vout (min) (V) | 1.2 |
| Vout (max) (V) | 1.2 |
| Iout (max) (A) | 0.6 |
| Iq (typ) (mA) | 0.05 |
| Switching frequency (min) (kHz) | 500 |
| Switching frequency (max) (kHz) | 1000 |
| Features | Adjustable current limit, Enable, Frequency synchronization, Light load efficiency, Power good, Synchronous Rectification |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| Regulated outputs (#) | 1 |
| Control mode | current mode |
| Duty cycle (max) (%) | 100 |
| Type | Converter |

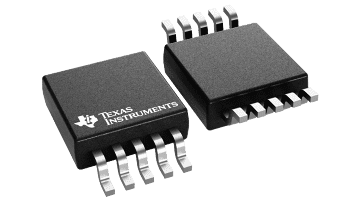

| VSSOP (DGS) | 10 | 14.7 mm² 3 x 4.9 |
