The LM3722/LM3723/LM3724 microprocessor supervisory circuits monitor the power supplies in microprocessor and digital systems. They provide a reset to the microprocessor during power-up, power-down, brown-out conditions, and manual reset.
The LM3722/LM3723/LM3724 asserts a reset signal whenever the supply decreases below the factory-programmed reset threshold. Reset will be asserted for at least 100ms even after VCC rises above the reset threshold.
The LM3722 has an active-low RESET push-pull output. The LM3723 has an active-high RESET push-pull output. The LM3724 has an active-low open-drain RESET output.
Three standard reset voltage options are available, suitable for monitoring 5V, 3.3V, and 2.5V supply voltages. Additional reset voltages are also available; contact Texas Instruments for details.

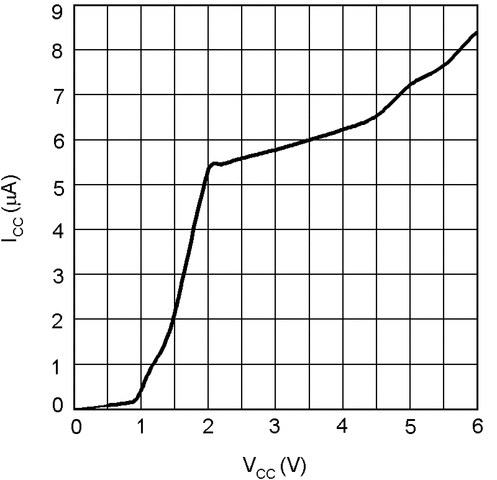

With a low supply current of only 6µA, the LM3722/LM3723/LM3724 are ideal for use in portable equipment. The LM3722/LM3723/LM3724 are available in the 5-pin SOT-23 package.
All trademarks are the property of their respective owners.
| Number of supplies monitored | 1 |
| Threshold voltage 1 (typ) (V) | 2.32, 3.08, 4.63 |
| Features | Manual reset capable, Undervoltage monitor only |
| Reset threshold accuracy (%) | 2.5 |
| Iq (typ) (mA) | 0.006 |
| Output driver type/reset output | Active-low, Open-drain |
| Time delay (ms) | 190 |
| Supply voltage (min) (V) | 1 |
| Supply voltage (max) (V) | 5.5 |
| Rating | Catalog |
| Watchdog timer WDI (s) | None |
| Operating temperature range (°C) | -40 to 125 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
