The bq2019 advanced battery-monitoring IC accurately measures the charge and discharge currents in a rechargeable battery pack. In pack integration, the bq2019 is the basis of a comprehensive battery-capacity management system in portable applications such as cellular phones, PDAs, or other portable products.
The bq2019 works with the host controller in the portable system to implement the battery management system. The host controller interprets the bq2019 data and communicates meaningful battery data to the end-user or power-management system.
The bq2019 provides 64 bytes of general-purpose flash memory, 8 bytes of ID ROM, and 32 bytes of flash-backed RAM for data storage. The nonvolatile memory can maintain formatted battery-monitor information, identification codes, warranty information, or other critical battery parameters when the battery is temporarily shorted or deeply discharged.
| Cell chemistry | Lead Acid, Li-Ion/Li-Polymer, NiCd, NiMH |
| Number of series cells | Single Cell |
| Communication interface | HDQ |
| Battery capacity (min) (mAh) | 1000 |
| Battery capacity (max) (mAh) | 4500 |
| Implementation | Pack |
| External capacity indication | None |
| Features | Coulomb Counter |
| Operating temperature range (°C) | -20 to 70 |
| Rating | Catalog |

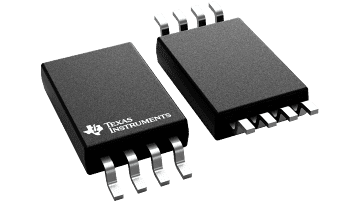

| TSSOP (PW) | 8 | 19.2 mm² 3 x 6.4 |
