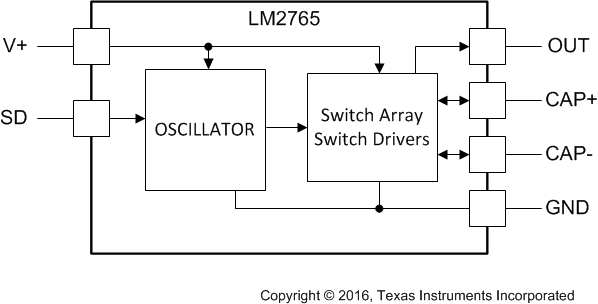

The LM2765 CMOS charge-pump voltage converter operates as a voltage doubler for an input voltage in the range of 1.8 V to 5.5 V. Two low-cost capacitors and a diode are used in this circuit to provide up to 20 mA of output current.
The LM2765 operates at 50-kHz switching frequency to reduce output resistance and voltage ripple. With an operating current of only 130 µA (operating efficiency greater than 90% with most loads) and 0.1-µA typical shutdown current, the LM2765 provides ideal performance for battery powered systems. The device is manufactured in a 6-pin SOT-23 package.
For all available packages, see the orderable addendum at the end of the data sheet.| Vin (min) (V) | 1.8 |
| Vin (max) (V) | 5.5 |
| Vout (min) (V) | 3.6 |
| Vout (max) (V) | 11 |
| Iout (max) (A) | 0.02 |
| Regulated outputs (#) | 1 |
| Switching frequency (min) (kHz) | 20 |
| Switching frequency (max) (kHz) | 100 |
| Iq (typ) (mA) | 0.13 |
| Features | Enable |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| Type | Charge pump |
| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |
