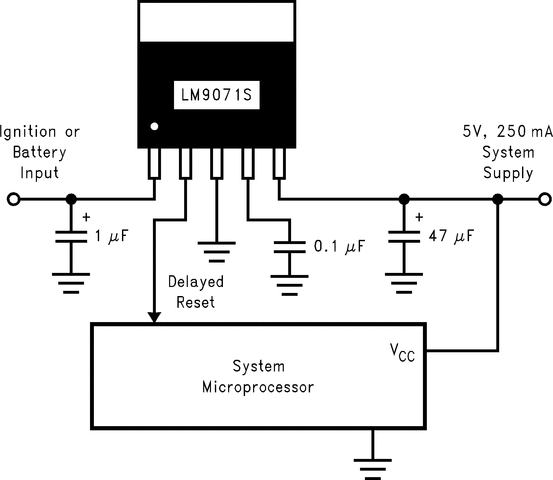

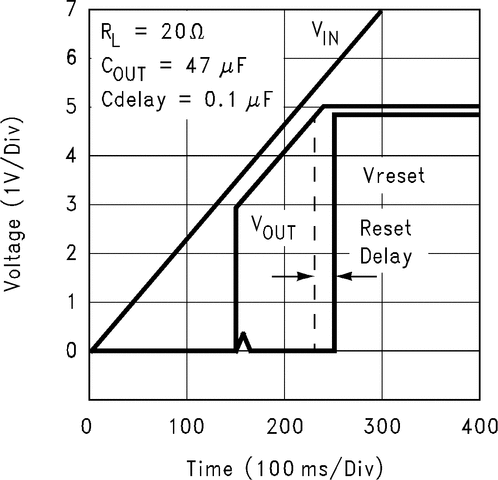

The LM9071 is a 5V, 250 mA low-dropout voltage regulator. The regulator features an active low delayed reset output flag which can be used to reset a microprocessor system on turn-ON and in the event that the regulator output falls out of regulation for any reason. An external capacitor programs a delay time interval before the reset output can return high.

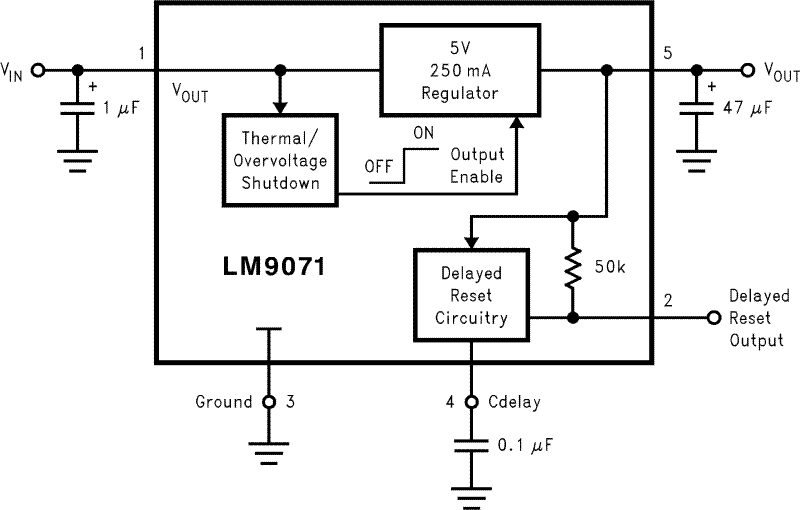

Designed for automotive application the LM9071 contains a variety of protection features such as reverse battery, over-voltage shutdown, thermal shutdown, input transient protection and a wide operating temperature range.
Design techniques have been employed to allow the regulator to remain operational and not generate false reset signals when subjected to high levels of RF energy (300V/m from 2 MHz to 400 MHz).
All trademarks are the property of their respective owners.
| Output options | Fixed Output |
| Iout (max) (A) | 0.25 |
| Vin (max) (V) | 26 |
| Vin (min) (V) | 5.3 |
| Vout (max) (V) | 5 |
| Vout (min) (V) | 5 |
| Fixed output options (V) | 5 |
| Iq (typ) (mA) | 4 |
| Thermal resistance θJA (°C/W) | 80 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 47 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 3 |
| Dropout voltage (Vdo) (typ) (mV) | 800 |
| Operating temperature range (°C) | -40 to 125 |

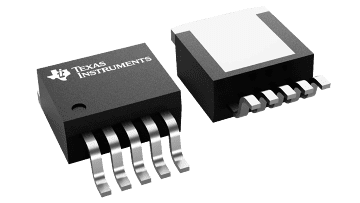

| TO-263 (KTT) | 5 | 154.8384 mm² 10.16 x 15.24 |
