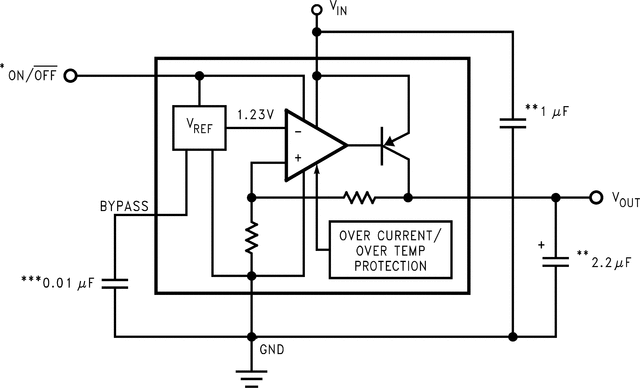

The LP2985LV-N is a 150-mA, fixed-output voltage regulator designed to provide high performance and low noise in applications requiring output voltages ≤ 2 V.
Using an optimized vertically integrated PNP (VIP) process, the LP2985LV-N delivers unequaled performance in all specifications critical to battery-powered designs: Ground Pin Current: Typically 825 µA at 150-mA load, and 75 µA at 1-mA load. Enhanced Stability: The LP2985LV-N is stable with output capacitor equivalent series resistance (ESR) as low as 5 mΩ, which allows the use of ceramic capacitors on the output.Sleep Mode: Less than 1-µA quiescent current when ON/OFF pin is pulled low.Precision Output: 1% tolerance output voltages available (A grade). Low Noise: By adding a 10-nF bypass capacitor, output noise can be reduced to 30 µV (typical).
For all available packages, see the orderable addendum at the end of the data sheet.| Output options | Fixed Output |
| Iout (max) (A) | 0.15 |
| Vin (max) (V) | 16 |
| Vin (min) (V) | 2.2 |
| Vout (max) (V) | 2 |
| Vout (min) (V) | 1.5 |
| Fixed output options (V) | 1.8, 2 |
| Noise (µVrms) | 30 |
| Iq (typ) (mA) | 2 |
| Thermal resistance θJA (°C/W) | 176 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 2.2 |
| Regulated outputs (#) | 1 |
| Features | Enable |
| Accuracy (%) | 2 |

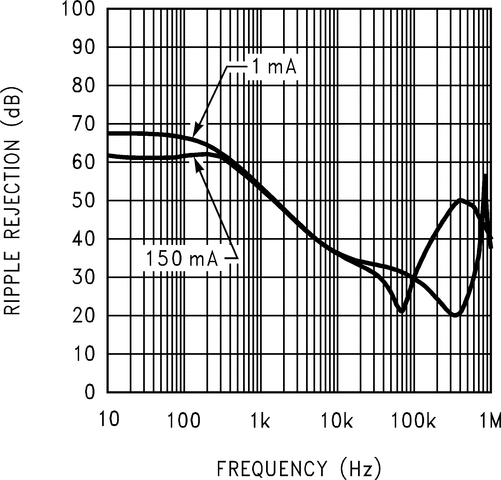

| PSRR at 100 KHz (dB) | 30 |
| Dropout voltage (Vdo) (typ) (mV) | 600 |
| Operating temperature range (°C) | -40 to 125 |
| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
