The LM136A-2.5QML integrated circuit is a precision 2.5V shunt regulator diode. This monolithic IC voltage reference operates as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the LM136A-2.5QML allows the reference voltage and temperature coefficient to be trimmed easily.

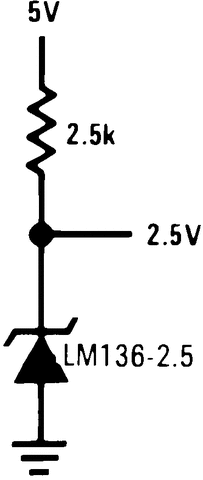

The LM136A-2.5QML is useful as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 2.5V make it convenient to obtain a stable reference from 5V logic supplies. Further, since the LM136A-2.5QML operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
All trademarks are the property of their respective owners.
| VO (V) | 2.5 |
| Initial accuracy (max) (%) | 1 |
| Iz for regulation (min) (µA) | 400 |
| Reference voltage (V) | Fixed |
| Rating | Space |
| Temp coeff (max) (ppm/°C) | 40 |
| Operating temperature range (°C) | -55 to 125 |
| Iout/Iz (max) (mA) | 10 |
| DIESALE (Y) | — | See data sheet |

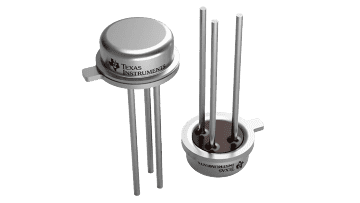

| TO-CAN (NDV) | 3 | 34.8704 mm² 6.41 x 5.44 |
