TLC5921

正在供货

具有 20MHz 数据传输速率的 16 通道 LED 驱动器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TLC5921 is a current-sink constant current driver incorporating shift register and data latch. The current value at constant current output can be set by one external register. The device also incorporates thermal shutdown (TSD) circuitry which turns constant current output off when the junction temperature exceeds the limit, and LED open detection (LOD) circuitry to report the LED was disconnected.

Drive Capability and Output Counts
- 80 mA (Current Sink) x 16 Bits
Constant Current Output Range
- 1 to 80 mA ( Current Value Setting for All Output Terminals Using External Resistor)
Constant Current Accuracy
- ±1% (Typ)
- ±4% (Max) (Maximum Error Between Bits, All Bits On)
Voltage Applied to Constant Current Output Terminal
- Minimum 0.6 V (Output Current 40 mA)
- Minimum 1 V (Output Current 80 mA)
Data Input
- Clock Synchronized 1 Bit Serial Input
Data Output
- Clock Synchronized 1 bit Serial Output (With Timing Selection)
Input/Output Signal Level...CMOS Level
Power Supply Voltage...4.5 V to 5.5V
Maximum Output Voltage...17 V (Max)
Data Transfer Rate...20 MHz (Max)
Operating Free-Air Temperature Range
-20°C to 85°C
Available in 32 Pin HTSSOP DAP Package (P_D=3.9 W,
T_A= 25°C)
LOD Function...LED Open Detection
(Error Signal Output at LED Disconnection)
TSD Function...Thermal Shutdown (Turn Output Off When Junction Temperature Exceeds Limit)

Features	LED Open Detection, ON/OFF LED Driver, Thermal shutdown
Data transfer rate (typ) (MHz)	20
Ch to ch accuracy (typ) (±%)	1
Rating	Catalog
Operating temperature range (°C)	-20 to 85

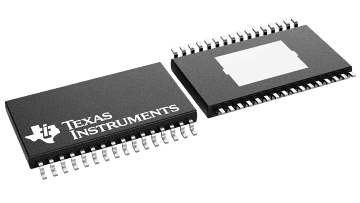

HTSSOP (DAP)

89.1 mm² 11 x 8.1
