The LM1085 is a regulator with a maximum dropout of 1.5 V at 3 A of load current. It has the same pin-out as TI’s industry standard LM317.
Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1085. Fixed output voltage versions integrate the adjust resistors.

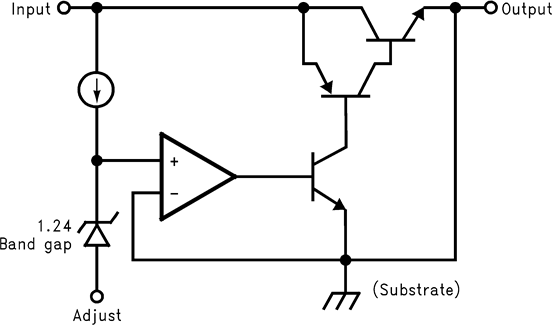

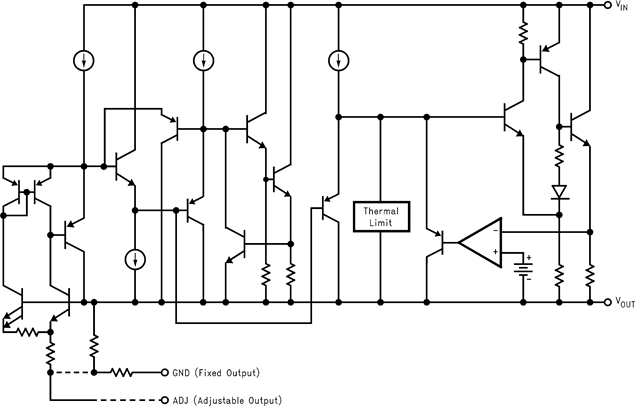

The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown.
Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5A version.
| Output options | Adjustable Output, Fixed Output |
| Iout (max) (A) | 3 |
| Vin (max) (V) | 29 |
| Vin (min) (V) | 2.6 |
| Vout (max) (V) | 27.5 |
| Vout (min) (V) | 1.25 |
| Fixed output options (V) | 3.3, 5, 12 |
| Noise (µVrms) | 38 |
| Iq (typ) (mA) | 5 |
| Thermal resistance θJA (°C/W) | 23 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Accuracy (%) | 4 |
| PSRR at 100 KHz (dB) | 30 |
| Dropout voltage (Vdo) (typ) (mV) | 1300 |
| Operating temperature range (°C) | -40 to 125 |

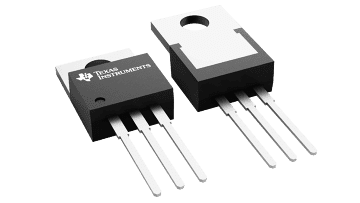

| TO-220 (NDE) | 3 | 46.5328 mm² 10.16 x 4.58 |

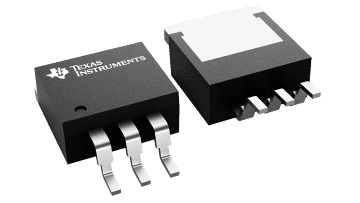

| TO-263 (KTT) | 3 | 154.8384 mm² 10.16 x 15.24 |
