LP2989

正在供货

产品详情

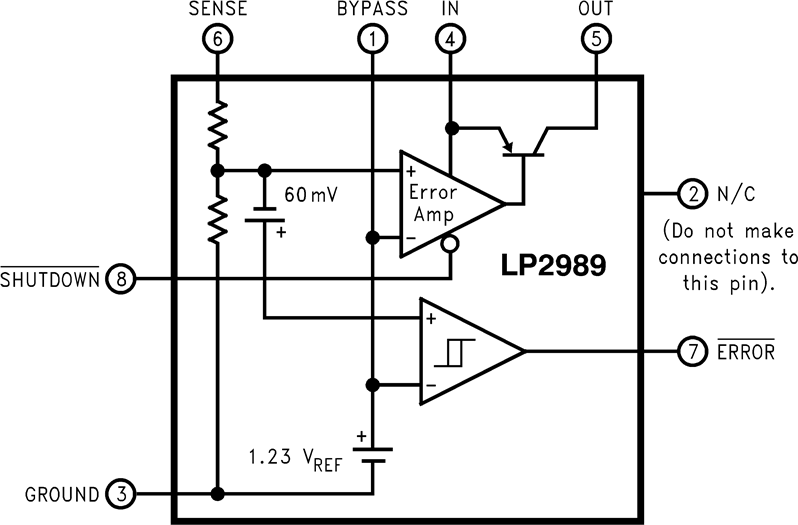

The LP2989 is a fixed-output 500-mA precision LDO regulator designed for use with ceramic output capacitors.

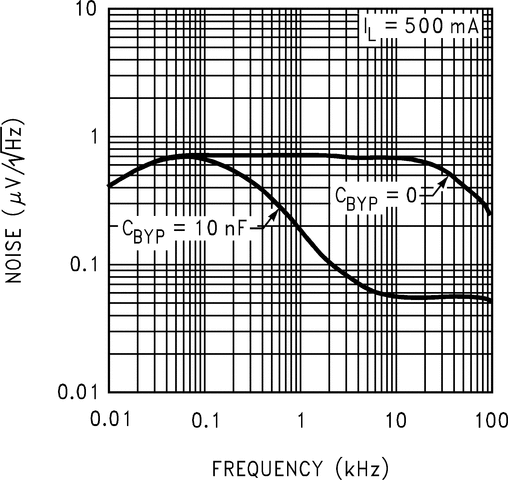

Output noise can be reduced to 18 µV (typical) by connecting an external 10-nF capacitor to the bypass pin.

Using an optimized Vertically Integrated PNP (VIP) process, the LP2989 delivers superior performance:

Dropout Voltage: Typically 310 mV at 500-mA load, and 1 mV at 100-µA load.
Ground Pin Current: Typically 3 mA at 500-mA load, and 110 µA at 100-µA load.
Sleep Mode: The LP2989 draws less than 0.8-µA quiescent current when SHUTDOWN pin is pulled low.
Error Flag: The built-in error flag goes low when the output drops approximately 5% below nominal.
Precision Output: Output voltage accuracy is 0.75% (A grade) and 1.25% (standard grade) at room temperature.

For output voltages < 2 V, see LP2989LV (SNVS086) data sheet.

Output options	Fixed Output
Iout (max) (A)	0.5
Vin (max) (V)	16
Vin (min) (V)	2.1
Vout (max) (V)	5
Vout (min) (V)	2.5
Fixed output options (V)	2.5, 2.8, 3, 3.3, 3.8, 5
Noise (µVrms)	18
Iq (typ) (mA)	0.11
Thermal resistance θJA (°C/W)	35
Rating	Catalog
Load capacitance (min) (µF)	4.7
Regulated outputs (#)	1
Features	Enable, Power good
Accuracy (%)	2
PSRR at 100 KHz (dB)	32
Dropout voltage (Vdo) (typ) (mV)	310
Operating temperature range (°C)	-40 to 125
