The TL750L and TL751L series of fixed-output voltage regulators offer 5-V, 8-V, 10-V, and 12-V options. The TL751L series also has an enable (ENABLE) input. When ENABLE is high, the regulator output is placed in the high-impedance state. This gives the designer complete control over power up, power down, or emergency shutdown.
The TL750L and TL751L series are low-dropout positive-voltage regulators specifically designed for battery-powered systems. These devices incorporate overvoltage and current-limiting protection circuitry, along with internal reverse-battery protection circuitry to protect the devices and the regulated system. The series is fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current during full-load conditions makes these devices ideal for standby power systems.
| Output options | Fixed Output |
| Iout (max) (A) | 0.15 |
| Vin (max) (V) | 26 |
| Vin (min) (V) | 6 |
| Vout (max) (V) | 12 |
| Vout (min) (V) | 5 |
| Fixed output options (V) | 5, 8, 10, 12 |
| Noise (µVrms) | 500 |
| Iq (typ) (mA) | 1 |
| Thermal resistance θJA (°C/W) | 108 |
| Rating | Catalog |
| Load capacitance (min) (µF) | 10 |
| Regulated outputs (#) | 1 |
| Features | Enable |
| Accuracy (%) | 2.5 |
| Dropout voltage (Vdo) (typ) (mV) | 600 |
| Operating temperature range (°C) | 0 to 125 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |

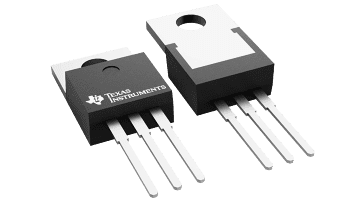

| TO-220 (KCS) | 3 | 46.228 mm² 10.16 x 4.55 |

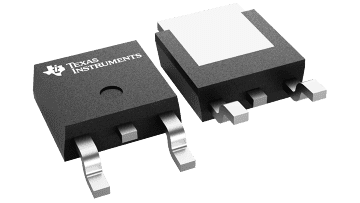

| TO-252 (KVU) | 3 | 66.726 mm² 6.6 x 10.11 |

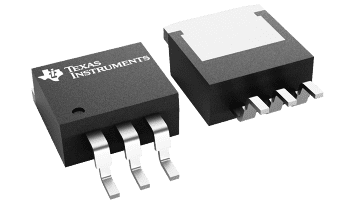

| TO-263 (KTT) | 3 | 154.8384 mm² 10.16 x 15.24 |
| TO-92 (LP) | 3 | 19.136 mm² 5.2 x 3.68 |
