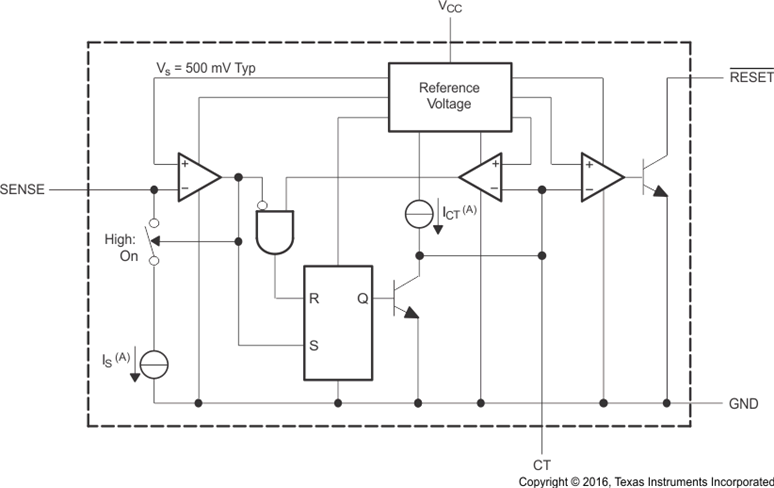

The TL7700 is a bipolar integrated circuit designed for use as a reset controller in microcomputer and microprocessor systems. The SENSE voltage can be set to any value greater than 0.5 V using two external resistors.
Circuit function is very stable, with supply voltage in the 1.8-V to 40-V range. Minimum supply current allows use with ac line operation, portable battery operation, and automotive applications. The TL7700 device is designed for operation from –40°C to 85°C.
| Number of supplies monitored | 1 |
| Threshold voltage 1 (typ) (V) | 0.5, Adjustable, adjustable |
| Features | Wide input voltage |
| Reset threshold accuracy (%) | 2 |
| Iq (typ) (mA) | 0.6 |
| Output driver type/reset output | Active-low, Open-drain |
| Supply voltage (min) (V) | 1.8 |
| Supply voltage (max) (V) | 40 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

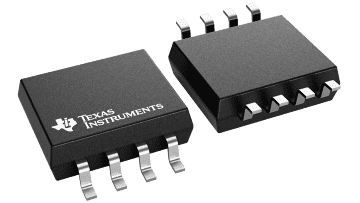

| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |
| TSSOP (PW) | 8 | 19.2 mm² 3 x 6.4 |
| VSSOP (DGK) | 8 | 14.7 mm² 3 x 4.9 |
