The TL7759 is a supply-voltage supervisor designed for use as a reset controller in microcomputer and microprocessor systems. The supervisor monitors the supply voltage for undervoltage conditions. During power up, when the supply voltage, VCC, attains a value approaching 1 V, the RESET and RESET outputs become active (high and low, respectively) to prevent undefined operation. If the supply voltage drops below the input threshold voltage level (VIT-), the reset outputs go to the reset active state until the supply voltage has returned to its nominal value (see timing diagram).
The TL7759C is characterized for operation from 0°C to 70°C.
| Number of supplies monitored | 1 |
| Threshold voltage 1 (typ) (V) | 4.55 |
| Features | Complimentary output, Undervoltage monitor only, Wide input voltage |
| Reset threshold accuracy (%) | 2.6 |
| Iq (typ) (mA) | 1.4 |
| Output driver type/reset output | Active-high, Active-low, Open-drain |
| Supply voltage (min) (V) | 1 |
| Supply voltage (max) (V) | 7 |
| Rating | Catalog |
| Watchdog timer WDI (s) | None |
| Operating temperature range (°C) | 0 to 70 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |

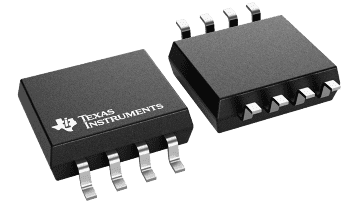

| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |
| TSSOP (PW) | 8 | 19.2 mm² 3 x 6.4 |
